Dashboards: Crypto Inventory

The Crypto Inventory dashboard provides a high-level view of cryptographic usage observed in client/server traffic. It includes four data points, and a line graph with options to filter the data and/or drilldown to detailed data. This dashboard features a clear view of the percentage of encrypted relationships, as well as your progress towards quantum-safe cryptography as a percentage of your encrypted traffic.

Main Menu → Dashboards → Crypto Inventory

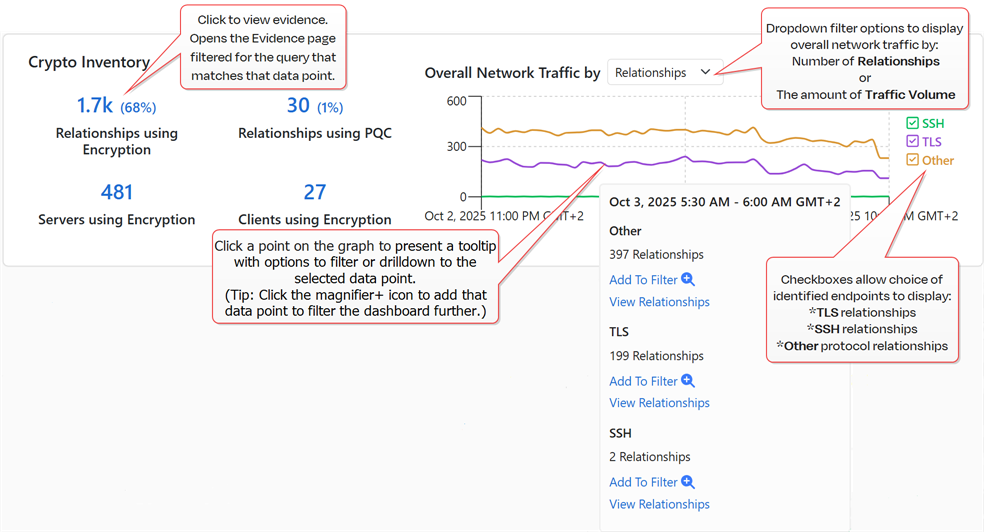

Crypto Inventory Panel

Counts of:

• Relationships using Encryption

• Relationships using PQC Cryptographic algorithms designed to be secure against the potential capabilities of quantum computers, which could break traditional encryption methods.

• Servers using Encryption

• Clients using Encryption

A line chart with the following display options:

• A dropdown to choose between displaying:

  • Relationships: Relationships over the selected time frame for overall network traffic.

    Note:  The relationships drilldown shows all client→server pairs relevant to the selected metric within the time frame. A relationship is a client communicating with a service on a server over a specific protocol/port during a connection. When available, the TLS TLS (Transport Layer Security) and its predecessor SSL (Secure Sockets Layer) are protocols for establishing authenticated and encrypted links between networked computers./SSH The SSH (secure shell) protocol provides for secure connections between computers. It provides several options for authentication, including public key, and protects the communications with strong encryption. handshake details and certificate(s) used for that communication are recorded with the relationship.

  • Traffic Volume: Traffic volume over the selected time frame for overall network traffic.

• Checkboxes to allow choice of identified relationships to display:

  • TLS relationships

  • SSH relationships

  • Other protocol relationships

The dashboard results can be filtered and the time frame updated using the Filter Bar (see Filtering).

Click the icon to filter the dashboard further by that data point.

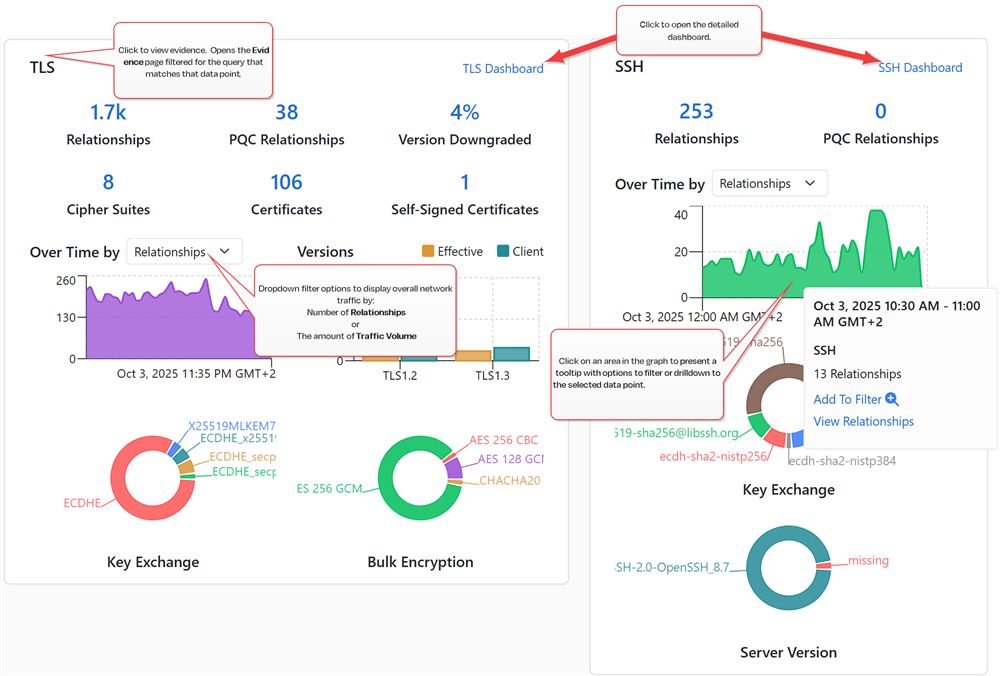

Protocol Specific Panels (TLS/SSH)

An overall view of TLS/SSH protocol specific panels display below the Inventory dashboard, which display high level counts and charts that can be used to filter the data and/or drilldown to detailed data.

Detailed dashboards can be accessed by clicking the link within the protocol specific panels. See Dashboards: SSH or Dashboards: TLS.

Use the filter bar to limit the results set from which the dashboard is built using the DTA query language (see Filtering).
