SAML

CipherInsights supports SAML 2.0 with external identity providers (e.g., Okta, Azure AD, ADFS, Keycloak). Users authenticate at your IdP, and CipherInsights authorizes access by mapping SAML groups to product roles.

Map SAML group values from the assertion to CipherInsights roles. For each role, enter one or more group strings (comma-separated). On login, any matching group grants that role.

Admin Area → Access Control → SAML

Configure SAML

To configure SAML:

1. Browse to Admin Area → Access Control → SAML and complete the fields as per the table, below.

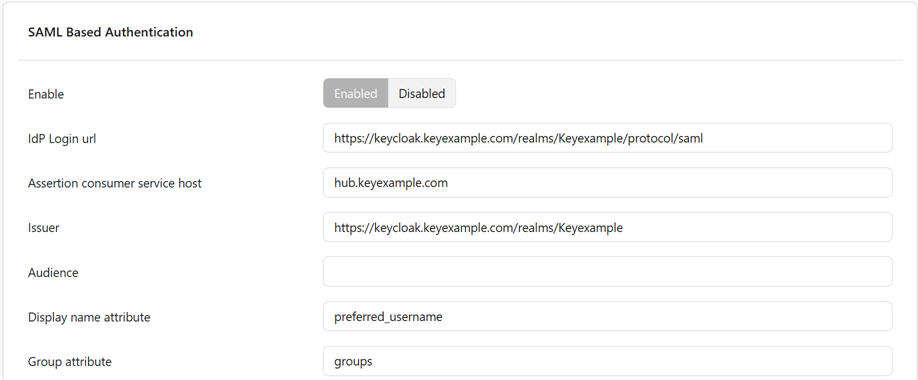

   Figure 69: Configure SAML

2. At the bottom of the form click Commit to save.

Table 6: SAML Configuration

Section	Setting	Description	Default
General	Enable	Turn SAML sign-in on/off for the Analytics Hub portal.	Disabled
General	IdP Login url	The IdP’s Single Sign-On (SSO) endpoint (SAML 2.0, typically HTTP-Redirect binding). Your IdP provides this. Required.
General	Assertion consumer service host	Hostname used to build the ACS URL when Request ACS URL is enabled. Example ACS host: hub.keyexample.com Becomes ACS URL (note HTTPS): https://hub.keyexample.com/saml/callback Register this exact ACS URL in your IdP application. Although this field is optional here, it is required by many IdPs when Request ACS URL is enabled.
General	Issuer	The Service Provider (SP) Entity ID that CipherInsights sends in AuthnRequests. Some IdPs require this to match the application’s configured Entity ID. Optional—depends on the IdP.
General	Audience	Expected AudienceRestriction value in incoming assertions (who the assertion is for). Usually the same as your SP Entity ID/Issuer. Set this if your IdP includes an Audience claim and requires a match.
General	Display name attribute	Name of the SAML attribute that contains the user’s friendly display name (e.g., displayName, name, or a directory-specific claim URI).	displayName
General	Group attribute	Name of the SAML attribute that contains the user’s group list (strings). Ensure your IdP is configured to send groups in the assertion; these values are matched to roles.	Groups
General	Request ACS URL	When enabled, CipherInsights includes the AssertionConsumerServiceURL in AuthnRequests (SP-initiated SSO). Many IdPs require this and will compare it to the application’s configured ACS URL.	Disabled
General	Verify assertions signature	Require a digital signature on the Assertion element. Recommended.	Enabled
General	Verify top level signature	Require a digital signature on the Response element. Recommended. Some IdPs sign both the Assertion and Response; enabling both is safest if your IdP supports it.	Enabled
General	IdP certificate	Paste the IdP’s public X.509 certificate (PEM) used to verify SAML signatures. Required. Note:  PEM only; do not paste private keys. Update here before the IdP rotates certificates.
Role to Group Mapping	Admin	Comma-separated list of groups to associate with the Administrator role (see Roles).
Role to Group Mapping	Operator	Comma-separated list of groups to associate with the Operator role (see Roles).
Role to Group Mapping	Unrestricted	Comma-separated list of groups to associate with the Unrestricted role (see Roles).
Role to Group Mapping	User	Comma-separated list of groups to associate with the User role (see Roles).
