Reports

Tip:  Where to find this in the Management Portal:
Reports → Definitions

The new Keyfactor Command reporting feature includes an interactive, widget-based design. It is a flexible and dynamic tool that allows you to configure reports to display important information using pre-defined widgets and user-populated parameters. Reports now come to life with a modern dashboard-style layout, making it easier than ever to spot trends and insights at a glance.

The reporting interface has three elements:

  • The Report Definitions page displays a searchable grid of existing reports. From here you can delete reports, run existing reports, or access the report configuration workspace (see Figure 84: Report Definitions Page).

  • The Reports Definitions workspace allows you to add, edit, delete, save, or run user-defined reports (see Reports Definitions Operations).

  • The Run Report page allows you to enter data for a report, generate it, and view the results (see Run Report).

Note:  The new Keyfactor Command reporting engine replaces the legacy reports, which will be removed in a future release. Customers should begin transitioning to the new reporting feature by reviewing existing reports and recreating them in the new reporting area as needed. To support that effort, refer to the Table 13: Legacy Reports and New Reports Widget Mapping below.

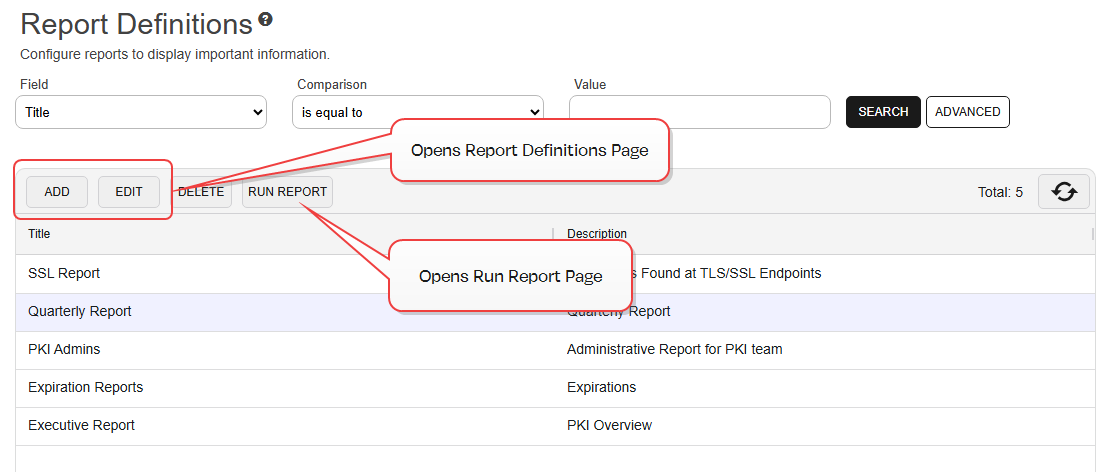

Figure 84: Report Definitions Page

Tip:  When designing your reporting solution, it may be helpful to understand how users will interact with Keyfactor Command when they run reports. The Run Report page displays all of the parameters used by the report’s widgets. You must enter the appropriate values for each parameterClosed A parameter or argument is a value that is passed into a function in an application. before generating the report (see Run Report). The values entered at run time apply to all widgets that use the same parameter. For example, if multiple widgets use the default certificate collectionClosed The certificate search function allows you to query the Keyfactor Command database for certificates from any available source based on any criteria of the certificates and save the results as a collection that will be available in other places in the Management Portal (for example expiration alerts and certain reports). parameter, they will all use the collection selected when the report is run. This behavior applies to all parameter types. If you need widgets of the same type to use different values, you can Customize Report Parameters.
Note:  Widget size is listed under the widget Type in Table 12: Available Widgets. The size indicates the horizontal (X) and vertical (Y) unit dimensions of the widget as it will display on the report. When you add a widget to a report, it automatically adjusts to the available space in the layout based on its size. However, if one or more widgets are locked, newly added widgets will adjust around the locked positions. The report layout has a maximum horizontal (X) width of 4 units. The vertical (Y) dimension is unlimited, up to the 10-widget maximum per report.

Widget Permissions

Tip:  The following permissions (see Security Roles and Claims) are required to use this feature:

Certificates > Collections > Read
AND
Certificate Templates > Read

Permissions for certificates can be set at the system-wide or resource-specific level. The appropriate level depends on how the certificates are accessed. See Certificate Collection Permissions for more information.

Certificate templateClosed A certificate template defines the policies and rules that a CA uses when a request for a certificate is received. permissions are required to turn off the All Applicable Templates option and display the template selection grid when running a report. Without this permission, the option is unavailable and only All Applicable Templates can be used.

Available Widgets

Table 12: Available Widgets

Title Description Parameters Type Drilldown and Filtering
Active Certificates by Signing Algorithm

Displays active certificate counts by signing algorithm for a given collection as a (summary table or doughnut chart). Active certificates aren't expired, revoked, or already renewed and have a state of either Active (1), Certificate Authority (6), or Parent Certificate Authority (7). Unknown certificates can be optionally included.

Find this on the Certificate Counts Tab

  • Certificate Collection search select dropdown.

  • Include Unknown Status toggle. By default this setting is turned OFF. Toggle ON to include unknown status certificates.

This is a table or doughnut widget.

2 × 2

  • Hover over a signing algorithm (doughnut wedge) to see the count.

  • Drilldown on signing algorithm (doughnut wedge) (or by clicking on one row enables the View action button) opens the certificate search grid with the certificates that make up that signing algorithm count.
Certificate Count By Issuer

Displays the total count for all certificates in a collection per issuer in a doughnut chart.

Find this on the Certificate Counts Tab.

  • Certificate Collection search select dropdown.

Doughnut chart widget

2 × 2

Hover over a Issuer (doughnut wedge) to see the Issuer information and count.



Drilldown on Issuer (doughnut wedge) opens the certificate search grid with the certificates in the collection per that issuer that make up that count.
Certificate Count per Requester

Displays active certificate counts by requesters for a given collection as a summary table or bar graph.

Find this on the Certificate Counts Tab.

  • Certificate Collection search select dropdown.

  • Start Date. Start Date must be today, or earlier.

  • End Date. The End Date must be today, or earlier.

This is a summary table or bar graph widget.

1 × 1

Table Widget;

  • Clicking on one user/row enables the View action button. When clicked, the certificate search page, pre-populated with a query for that user, opens a new browser window.

Bar Widget:

  • Hover over a bar/user to see the user name and count.

  • Drilldown on a bar/user opens the certificate search grid with the certificates requested by that user that make up that count.
Certificates by Signature Strength

Displays certificate counts by SigningAlgorithm signature strength for a given collection as a (summary table or doughnut chart).

ClosedCategory Definitions:

Find this on the Certificate Counts Tab.

 Certificate Collection search select dropdown.

This is a table or doughnut widget.

2 × 2

  • Hover over a category (doughnut wedge) to see the count.

  • Drilldown on category (doughnut wedge) (or by clicking on one row enables the View action button) opens the certificate search grid with the certificates that make up that category count.
Certificates Expiring in the Next 12 Weeks

Displays the total count for all certificates in a collection that are expiring in the 12 weeks from the indicated start date, in a histogram.

Find this on the Certificate Counts Tab.

  • Certificate Collection search select dropdown.

  • Expiring Certificates Start Date

Histogram widget with bars showing counts at 1 week intervals from the start date. Count on the y-axis, date intervals on the x-axis.

3 × 3

  • Hover over a bar to see the count.

  • Drilldown on a bar opens the certificate search grid with the certificates that make up that count.
Certificates Expiring in the Next 36 Months

Displays the total count for all CA certificates in a collection that are expiring in the 36 months from the indicated start date, in a histogram.

Find this on the Certificate Counts Tab.

  • Certificate Collection search select dropdown.

  • Expiring Certificates Start Date

Histogram widget with bars showing counts at 3 month intervals from the start date. Count on the y-axis, date intervals on the x-axis.

3 × 3

  • Hover over a bar to see the count.

  • Drilldown on a bar opens the certificate search grid with the certificates that make up that count.
Certificates Found at TLS/SSL Endpoints

The count of latest certificates found at TLS/SSL endpoints within the specified date range and the specified agent pool.

Find this on the SSL Tab.

  • Certificate Collection search select dropdown.

  • Start Date. Start Date must be today, or earlier.

  • End Date. The End Date must be today, or earlier.

  • Templates. By default, the All Applicable Templates toggle is ON. Toggle OFF to open a grid to select individual templates from a dropdown of available templates in the search select.

Count tile widget

1 × 1

Drilldown on count opens the certificate search grid with the certificates that make up that count.
Certificates Issued Per Template

Displays the total count for all certificates in a collection that have been issued for each template for the timeline indicated, in a line plot.

Find this on the Issuance Timelines Tab.

  • Certificate Collection search select dropdown.

  • Templates

  • End Date. The End Date must be today, or earlier.

  • Period Type

  • Number of Periods

Line plot widget showing dates for the period type and number selected on the x-axis and counts on the y-axis.

3 × 2

  • Hover over a point on the line to see the count and template name.

  • Drilldown on a point on the line opens the certificate search grid with the certificates that make up that count.
Deprecated Signing Algorithms

Displays the certificate counts grouped by deprecated signing algorithm for a given collection. Deprecated signing algorithms are SHA-1 & MD5 and below.

Certificates may have SHA1 in different formats (for example; SHA1, SHA-1, SHA 1). Any certificates with these formats are grouped together (same for MD signing algorithms).

Find this on the Certificate Counts Tab.

 Certificate Collection search select dropdown.

This is a doughnut widget.

2 × 2

  • Hover over a signing algorithm (doughnut wedge) to see the count.

  • Drilldown on signing algorithm (doughnut wedge) opens the certificate search grid with the certificates that make up that signing algorithm count.
Expired Certificates Within Date Range

Displays the total count for all expired certificates from the provided date to the current date (evaluation date) in the provided collection in a count tile.

Find this on the Certificate Counts Tab.

  • Certificate Collection search select dropdown.

  • The Start Date field. Start Date must be today, or earlier.

Count tile widget

1 × 1

 Drilldown on count opens the certificate search grid with the certificates in the collection that make up that count.
Expiring Certificates Within Date Range

Displays the total count for all expiring certificates from the provided date range in the provided collection in a count tile.

Note:  If the current date falls within the date range provided, expired certificates will also be included in the count.
Find this on the Certificate Counts Tab.

  • Certificate Collection search select dropdown.

  • Expiring Certificates Start Date

  • Expiring Certificates End Date

Count tile widget

1 × 1

 Drilldown on count opens the certificate search grid with the certificates in the collection and date range that make up that count.
Header Widget

A tile that accepts text to allow users to add header information to a report. The text area input can be edited upon adding or editing a report definition but is static upon generating the report. 200 character limit. Accepts only one line of text (does not accept new lines).

Find this on the Text Tab.

 None

A text tile that displays the provided text.

4 × 1

  • Add the text box to the report.

  • Add the text to display.

  • It will be displayed at the top of the report.
Revoked Certificates by Templates For CA(s)

Displays the number of certificates revoked by indicated templates in the specified date range grouped by CA(s).

If templates from different configuration tenants are returned that have the same display name, the configuration tenant is appended to the end of those templates to differentiate between them.

Find this on the Certificate Counts Tab.

  • Certificate Collection search select dropdown.

  • Start Date . Start Date must be today, or earlier.

  • End Date. The End Date must be today, or earlier.

  • Templates. By default, the All Applicable Templates toggle is ON. Toggle OFF to open a grid to select individual templates from a dropdown of available templates in the search select.

Stacked bar widget

4 × 4



X-Axis = template names, sorted alphabetically

Y-Axis = certificate counts, grouped by CA

  • CA's can be filtered using the filter button on the bottom right of the widget.

  • Hover over a bar/template to see the template name, CA, and count.

  • Drilldown on a bar/template opens the certificate search grid with the certificates in the collection per that template that make up that count.
Text Entry Widget

A tile that accepts text to allow users to add critical or informative information to a report. The text area input can be edited upon adding or editing a report definition but is static upon generating the report. 700 character limit. The text tile supports new lines, and has scrollbar if text extends beyond the tile box size.

Find this on the Text Tab.

 None

A text tile that displays the provided text.

1 × 1

  • Add the text box to the report.

  • Move the box to the location on the report where the information is needed.

  • Add the text to display.


Top Ten Issuers

Displays the top ten certificate issuers and the counts of certificates per issuer.

Find this on the Certificate Counts Tab.

  • Certificate Collection search select dropdown.

This is a grid widget with two columns: Issuer DN and Certificate Count.

2 × 2

 Clicking on one row enables the View action button. When clicked, the certificate search page, pre-populated with a query which matches that row, opens a new browser window.
Total Active Certificates

Displays the total count for all active certificates in the provided collection in a count tile.

Active certificates aren't expired, revoked, or already renewed and have a state of either: Unknown (0), Active (1), Certificate Authority (6), or Parent Certificate Authority (7). Unknown certificates can be optionally included.

Find this on the Certificate Counts Tab.

  • Certificate Collection search select dropdown.

  • Include Unknown Status toggle. By default this setting is turned OFF. Toggle ON to include unknown status certificates.

Count tile widget

1 × 1

 Drilldown on count opens the certificate search grid with the certificates in the collection that make up that count.

Note:  One significant difference between the legacy reports and the new report widgets is that the new report widgets are collection-based, whereas legacy reports are certificate-authority-based.

Table 13: Legacy Reports and New Reports Widget Mapping

Legacy Report New Report Widget Notes

  • Certificate Count by Template

  • Statistical Report

  • Certificates Issued Per Template

  • Revoked Certificates by Templates For CA(s)


PKI Status for Collection

For the grid and drilldown:

  • Top 10 Issuers

For the PKI Overview:

  • Total Active Certificates

  • Certificates Expiring in the Next 12 Weeks

  • Certificates Expiring in the Next 36 Months


Monthly Executive Report Certificate Count by Issuer
Issued Certificates Per Certificate Authority

Certificates Issued per Template


Certificates Found at TLS/SSL Endpoints Certificates Found at TLS/SSL Endpoints

  • Expiration Report

  • Expiration Report by Days

  • Certificates Expiring in the Next 12 Weeks

  • Certificates Expiring in the Next 36 Months

  • Expired Certificates Within Date Range

  • Expiring Certificates Within Date Range




Certificate Issuance Trends with Metadata Certificate Count per Requester
Certificate Count by User per Template Certificate Count per Requester
Certificates by Key Strength Certificates by Signature Strength

See dashboard widget Certificates With Weak Keys for similar information.
Full Extract Report

Use certificate search grid (and Get CSV if desired)
Certificates in Collection

Use the Collection Manager certificate search grid (and Get CSV if desired).

  • SSH Trusted Public Keys with No Known Private Keys

  • SSH Keys with Root Logon Access

  • SSH Keys by Age

  • SSH Key Usage Report



Use SSH menu for some information.
Revoked Certificates in Certificate Stores

Use Locations > Certificate Stores menu for some information.
Certificates by Type and Java Keystores   This report will not be added to the new reporting system as the built-in JKS store type is deprecated.
Certificates by Revoker

Use certificate search grid (and Get CSV if desired)
