Workflow Instances

This page supports the standard query format described in Using Search in the Management Portal and includes its own set of query parsers specific to this operation. Use the following parsers to filter and refine results for this page.

To view a workflow instance:

1. On the Workflow Instances page, double-click an instance or select the instance and choose View from the toolbar or right-click menu.

2. The Instance Review dialog includes the following information:

   Instance Section

   Name	Description
   Id	A GUID indicating the Keyfactor Command reference ID for the instance.
   Title	A description for the action taking place in the step. For example: "KEYEXAMPLE\jsmith is enrolling for a certificate with CN=appsrvr12.keyexample.com." Or: "KEYEXAMPLE\mjones is revoking certificate with CN=appsrvr14.keyexample.com."
   Status	The current status message of the workflow instance. For example, for an enrollment that succeeded, the status message might be: Issued. The private key was successfully retained. For a workflow suspended and awaiting approval, the status message might be: Awaiting 2 more approval(s) from approval roles. For an enrollment that could not be submitted because a regular expression rule was not met, the status message might be something like: Pre-process failed: Invalid ST provided: Value must be one of California, Washington, Texas, New York, Illinois or Ohio. For an enrollment that failed due to rejection by the CA, the status message might be: The certificate request failed with the reason '[CA reason]' A workflow that failed at a PowerShell step might include the PowerShell error in the status message: Step 'Run PowerShell' failed: At line:5 char:19 + [datetime]$Date + ~ Missing ')' in function parameter list. At line:7 char:1 + ) + ~ Unexpected token ')' in expression or statement.
   Current Step	The display name defined for the workflow instance step at which the instance has paused or stopped. For a successfully completed workflow, this will be End-NOOP. For a suspended workflow, this will be the step that is awaiting user input to continue the workflow. For a failed workflow, this will be the step at which the workflow failed.

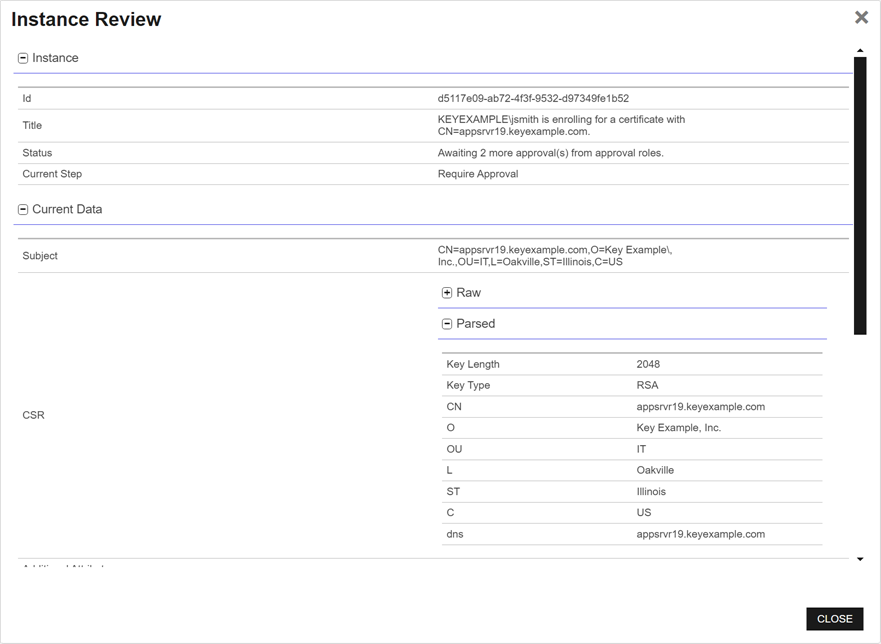

   Figure 254: Workflow Instance Review

   Current Data Section

   The data included in this section will vary depending on the request type and the configuration of the workflow.

   Certificate Entered Collection and Certificate Left Collection

   For a certificate that entered or left a certificate collection, this section can include:

   Name	Description
   (Custom)	Optional user-generated custom fields returning response data from PowerShell scripts or REST requests. These will be sorted alphabetically in among the other fields on the page.
   Certificate Id	The Keyfactor Command reference ID for the certificate added to or removed from the certificate collection. Tip:  Certificate Id and Keyfactor Id both refer to the same value—the Keyfactor Command–assigned reference ID for a certificate. You may see either name in different parts of the Management Portal or Keyfactor API because Certificate Id was the original term, and Keyfactor Id is its newer replacement. The updated name helps avoid confusion with a different value—the certificate’s identifier on the issuing CA—which is now called the CA Record ID.

   Certificate Entered Store and Certificate Left Store

   For a certificate that entered or left a certificate store, this section can include:

   Name	Description
   (Custom)	Optional user-generated custom fields returning response data from PowerShell scripts or REST requests. These will be sorted alphabetically in among the other fields on the page.
   Certificate Id	The Keyfactor Command reference ID for the certificate added to or removed from the certificate collection. Tip:  Certificate Id and Keyfactor Id both refer to the same value—the Keyfactor Command–assigned reference ID for a certificate. You may see either name in different parts of the Management Portal or Keyfactor API because Certificate Id was the original term, and Keyfactor Id is its newer replacement. The updated name helps avoid confusion with a different value—the certificate’s identifier on the issuing CA—which is now called the CA Record ID.
   Certificate Store Id	The Keyfactor Command reference GUID of the certificate store to which the certificate was added or removed.
   Container Id	The optional Keyfactor Command reference ID of the certificate store application with which the certificate store is associated.

   Enrollment

   Name	Description
   (Custom)	Optional user-generated custom fields returning response data from PowerShell scripts or REST requests. These will be sorted alphabetically in among the other fields on the page.
   Additional Attributes	Values for any custom enrollment fields set on the certificate template to supply custom request attributes to the CA during the enrollment process.
   Alternative Key Length	The alternative key size for the certificate.
   Alternative Key Type	The alternative key encryption algorithm for the certificate.
   CA Certificate Request Id	The ID assigned to the certificate request by the CA. Note:  This field is populated only if the certificate request fails at the CA level or requires manager approval at the CA level.
   CA Certificate Request Id	A string containing the ID assigned to the certificate request by the CA. Note:  This field is populated only if the certificate request fails at the CA level or requires manager approval at the CA level.
   CA Certificate Request Status	An integer indicating the status for the certificate as returned by the CA. Note:  This field is populated only if the certificate request fails at the CA level or requires manager approval at the CA level.
   CA Certificate Request Status	An integer indicating the status for the certificate as returned by the CA. Note:  This field is populated only if the certificate request fails at the CA level or requires manager approval at the CA level.
   Certificate Authority	The certificate authority that will be used to enroll against in hostname\logical name format.
   Certificate Chain Content	A string containing the certificates in the certificate chain, if the Include Chain option was selected for the request.
   Certificate To Be Renewed	Data for the certificate that this certificate replaces on a renewal including: Certificate: The original certificate in Base64-encoded format. CertificateId: The Keyfactor Command reference ID of the original certificate.
   CSR Key	The unparsed version of the certificate signing request generated for the certificate request.
   Curve	The elliptic curve for the certificate.
   Custom Name	A custom friendly name for the certificate, if entered at enrollment.
   Disposition	An integer indicating the reference ID of the disposition for the certificate request. Note:  This field is only populated only after the certificate request has been submitted to the CA.
   Disposition Message	A message about the certificate request (for example, The private key was successfully retained.). Note:  This field is only populated only after the certificate request has been submitted to the CA.
   Enroll Step Executed	A flag indicating whether the enrollment step of the workflow has initiated (True) or not (False).
   Enrollment Context	A string containing the enrollment context returned to Keyfactor Command for external validation requests. Note:  This field is only populated only after the certificate request has been submitted to the CA.
   Enrollment Pattern Id	The enrollment pattern ID used when requesting the certificate.
   Enrollment Start Time	The date and time at which the enrollment request was initiated, in Coordinated Universal Time (UTC).
   Format	The desired output format for the certificate. A value of STORE indicates that the certificate is intended to be delivered into one or more certificate stores.
   From PFX Enrollment	A flag indicating whether the request was initiated from PFX enrollment.
   Include Chain	A flag indicating whether to include the certificate chain in the enrollment response (True) or not (False).
   Issuer Dn	The distinguished name of the issuer of the certificate.
   Key Length	The key size for the certificate.
   Key Retention	A flag indicating whether the private key for the certificate resulting from the enrollment will be retained in c (True) or not (False).
   Key Status	A numeric value indicating the status of the private key retention for the certificate within Keyfactor Command. Possible values are: 0: Unknown 1: Saved 2: Expected 3: NoRetention 4: Failure 5: Temporary
   Key Type	The key type of the certificate.
   Keyfactor Id	The Keyfactor Command reference ID for the certificate. Tip:  Certificate Id and Keyfactor Id both refer to the same value—the Keyfactor Command–assigned reference ID for a certificate. You may see either name in different parts of the Management Portal or Keyfactor API because Certificate Id was the original term, and Keyfactor Id is its newer replacement. The updated name helps avoid confusion with a different value—the certificate’s identifier on the issuing CA—which is now called the CA Record ID.
   Management Job Time	The schedule for the management job to add the certificate to any certificate stores.
   Metadata	Values for the metadata fields that will be associated with the certificate once it is in Keyfactor Command.
   Owner Role Id	The Keyfactor Command reference ID of the security role assigned as the certificate owner.
   Raw Certificate	The raw certificate generated from a certificate enrollment, without BEGIN and END blocks.
   Requester Email	The email address of the user making the enrollment request.
   SANs	The subject alternate names defined for the certificate. Possible types that can be entered within Keyfactor Command are DNS Name, IPv4 Address, IPv6 Address, User Principal Name, and Email. Within each type is a list of entries for that type shown with a key name of the entry number and the actual value. For example, if you had two DNS SANs, the DNS Name section would look something like: Entry 1: myfirstsan.keyexample.com Entry 2: mysecondsan.keyexample.com
   Serial Number	The serial number of the certificate.
   Stores	The certificate stores to which the certificate should be distributed, if applicable.
   Subject	The distinguished name of the certificate.
   Template Name	The template that was used when requesting the certificate.
   Thumbprint	The thumbprint of the certificate.

   Expiration

   For a certificate expiration alert that uses workflow, this section can include:

   Name	Description
   (Custom)	Optional user-generated custom fields returning response data from PowerShell scripts or REST requests. These will be sorted alphabetically in among the other fields on the page.
   Alert Id	The Keyfactor Command reference ID of the expiration alert.
   Certificate Id	The Keyfactor Command reference ID for the certificate. Tip:  Certificate Id and Keyfactor Id both refer to the same value—the Keyfactor Command–assigned reference ID for a certificate. You may see either name in different parts of the Management Portal or Keyfactor API because Certificate Id was the original term, and Keyfactor Id is its newer replacement. The updated name helps avoid confusion with a different value—the certificate’s identifier on the issuing CA—which is now called the CA Record ID.

   Key Rotation

   For an SSH The SSH (secure shell) protocol provides for secure connections between computers. It provides several options for authentication, including public key, and protects the communications with strong encryption. key rotation alert that uses workflow, this section can include:

   Name	Description
   (Custom)	Optional user-generated custom fields returning response data from PowerShell scripts or REST requests. These will be sorted alphabetically in among the other fields on the page.
   Alert Id	The Keyfactor Command reference ID of the key rotation alert.
   Serial	The certificate serial number.
   Username	User name of the SSH user owning the key.

   Revocation

   For a revocation, this section may include:

   Name	Description
   (Custom)	Optional user-generated custom fields returning response data from PowerShell scripts or REST requests. These will be sorted alphabetically in among the other fields on the page.
   Certificate Authority	The certificate authority that issued the certificate.
   Certificate Id	The Keyfactor Command reference ID for the certificate being revoked. Tip:  Certificate Id and Keyfactor Id both refer to the same value—the Keyfactor Command–assigned reference ID for a certificate. You may see either name in different parts of the Management Portal or Keyfactor API because Certificate Id was the original term, and Keyfactor Id is its newer replacement. The updated name helps avoid confusion with a different value—the certificate’s identifier on the issuing CA—which is now called the CA Record ID.
   Comment	A freeform reason or comment to explain why the certificate is being revoked.
   Delegate	A flag indicating whether delegation was turned on for the certificate authority that issued the certificate at the time revocation was requested (True) or not (False). For more information, see Delegation Section.
   Effective Date	The date and time when the certificate will be revoked.
   Initiating User Name	The name of the user who initiated the workflow in DOMAIN\\username format.
   Operation Start	The time at which the revocation workflow was initiated.
   RevokeCode	The specific reason that the certificate is being revoked. Possible values are: -1: Remove from Hold 0: Unspecified 1: Key Compromised 2: CA Compromised 3: Affiliation Changed 4: Superseded 5: Cessation of Operation 6: Certificate Hold 7: Remove from CRL. Only valid in the case that a cert is already on a CRL in a manner that it can be removed, such as Certificate Hold.
   Serial Number	The serial number of the certificate being revoked.
   Thumbprint	The thumbprint of the certificate being revoked.

   Revocation Monitoring

   For a revocation monitoring alert that uses workflow, this section can include:

   Name	Description
   (Custom)	Optional user-generated custom fields returning response data from PowerShell scripts or REST requests. These will be sorted alphabetically in among the other fields on the page.
   Alert Id	The Keyfactor Command reference ID of the revocation monitoring alert.
   Status	The current state of the revocation monitoring endpoint. For example: Expired
   Subject	A description of the current state of the revocation monitoring endpoint. For example: CRL Distribution Point at Location 'http://www.keyexample.com/CorpIssuing1.crl' has Expired
   URL	The URL for the CRL or OCSP location.



   Figure 255: View a Workflow Instance

3. Click Close to close the viewer.

The workflow definition as it existed at the time a particular workflow instance was generated may not necessarily match the current workflow definition. Using the Workflow Definition option on the Workflow Instances page, you can view the workflow definition for the selected instance as it was at the time the instance was initiated using the workflow workspace.

To view a workflow instance definition:

1. On the Workflow Instances page, select a workflow instance and click View Definition from either the top or right-click menu.
2. A read-only copy of the workflow definition at the time the instance was initiated will open in the workflow definition workspace. For information about using the workflow definition workspace, see Add, Copy, or Modify a Workflow Definition.

If a workflow instance has been initiated in error or with a workflow definition that is not configured correctly, you have the option to stop the workflow instance.

To stop a workflow instance:

1. On the Workflow Instances page, select a workflow instance and click Stop from either the top or right-click menu.
2. On the Confirm Operation alert, click OK to confirm or Cancel to cancel the operation.

If a workflow instance has failed or been stopped to correct an issue, you may restart it to reinitialize the request after correcting whatever issue caused the failure (for example, a PowerShell script failed or a CA A certificate authority (CA) is an entity that issues digital certificates. Within Keyfactor Command, a CA may be a Microsoft CA or a Keyfactor gateway to a cloud-based or remote CA. was not responding on enrollment). You may also choose to use restart if a workflow instance was initiated with a workflow definition that had an incorrect definition that can be corrected—for example, the definition requires approval from just one user and that user is no longer available. In this case, you can update the definition, republish it, and then restart the workflow with the latest published version.

When you restart a workflow instance, it starts over from the beginning, not from the failure point.

To restart a workflow instance:

1. On the Workflow Instances page, select a workflow instance and click Restart from either the top or right-click menu.
2. On the Confirm Operation alert, click OK to confirm or Cancel to cancel the operation.

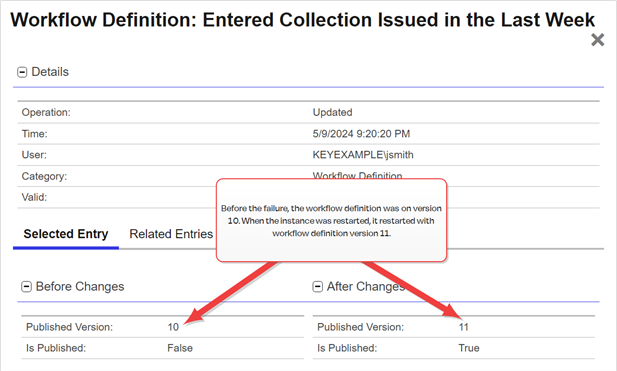

After restarting a workflow instance, you can view any differences between the original instance and the newly restarted instance by looking at the audit log record (see Audit Log Operations) for the workflow instance restart. The Related Entries in the audit log record do not include the original workflow instance that failed since restarting a workflow instance generates a new workflow instance.

If a workflow instance has failed, you may wish to remove the failed instance from the grid.

To delete a workflow instance:

1. On the Workflow Instances page, select a workflow instance and click Delete from either the top or right-click menu.
2. On the Confirm Operation alert, click OK to confirm or Cancel to cancel the operation.

An audit log entry is created when you delete a workflow instance (see Audit Log). Instances deleted as the result of system action (for example, purging old records) are not audited.
