Install IIS, ASP.NET, and .NET Framework

Internet Information Services (IIS) and .NET Framework 4.6.2 or greater must be installed on the Keyfactor SCEP server prior to installation of the Keyfactor SCEP software.

IIS is a standard Windows role added through the Windows Server Manager tool and .NET is a standard Windows feature added through the Windows Server Manager tool. In some cases it may be necessary to update the .NET framework with a downloadable update package or through Windows update, but the built-in version is generally adequate.

Check the Installed .NET Framework Version

The .NET Framework may already be installed on your server. If it is not, it will be installed automatically when you install ASP.NET (see Install IIS and Built-in ASP.NET using PowerShell). If the .NET Framework is not already present or the version is not already at least 4.6.2, check the version again after completing the built-in ASP.NET install.

To verify the version of .NET installed, either:

  1. Open the Registry Editor:

    regedit

  2. Navigate to:

    HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\NET Framework Setup\NDP\v4\Full
  3. Validate that the Release attribute value indicates a version of .NET Framework that is 4.6.2 or higher is installed, as shown in Table 2: .NET Framework Release Values.

Or:

  1. Open a command prompt or PowerShell window and type the following command:

    reg query "HKLM\Software\Microsoft\NET Framework Setup\NDP\v4\Full"
  2. Validate that the Release attribute value indicates a version of .NET Framework that is 4.6.2 or higher is installed, as shown in Table 2: .NET Framework Release Values.

Table 2: .NET Framework Release Values

.NET Framework

Release Value (Decimal)

 Release Value (Hexadecimal)
.NET Framework 4.6.2 394802 or 394806 60632 or 60636
.NET Framework 4.7 460805 70805
.NET Framework 4.7.1 461308 or 461310 709FC or 709FE
.NET Framework 4.7.2 461808 or 461814 70BF0 or 70BF6
.NET Framework 4.8 528040, 528049, 528372, or 528449 8oEA8, 80EB1, 80FF4, 81041
Install IIS and Built-in ASP.NET using PowerShell

It is possible to install IIS and the necessary features using PowerShell rather than the below-referenced GUI-based installation method. Install using either the Roles and Features Wizard (see Install IIS and Built-in ASP.NET using the Roles and Features Wizard) or PowerShell.

The correct PowerShell command to install the necessary roles and features is:

Copy
Install-WindowsFeature Web-Server, Web-Asp-Net45, Web-Default-Doc, Web-Dir-Browsing, Web-Http-Errors, Web-Static-Content, Web-Http-Logging, Web-Stat-Compression, Web-Filtering, Web-Net-Ext45, Web-ISAPI-Ext, Web-ISAPI-Filter, Web-Mgmt-Console
Important:  Do not install the IIS WebDAV Publishing feature. Keyfactor SCEP will not operate correctly if this feature is installed.
Tip:  To check and see if all the required roles and features have been installed, use Get-WindowsFeature with the same list of roles and features like so:
Get-WindowsFeature Web-Server, Web-Asp-Net45, Web-Default-Doc, Web-Dir-Browsing, Web-Http-Errors, Web-Static-Content, Web-Http-Logging, Web-Stat-Compression, Web-Filtering, Web-Net-Ext45, Web-ISAPI-Ext, Web-ISAPI-Filter, Web-Mgmt-Console

Output from this command will look something like the following, which shows some required features installed and some missing. Make sure all roles and features in the query output are marked Installed before continuing.

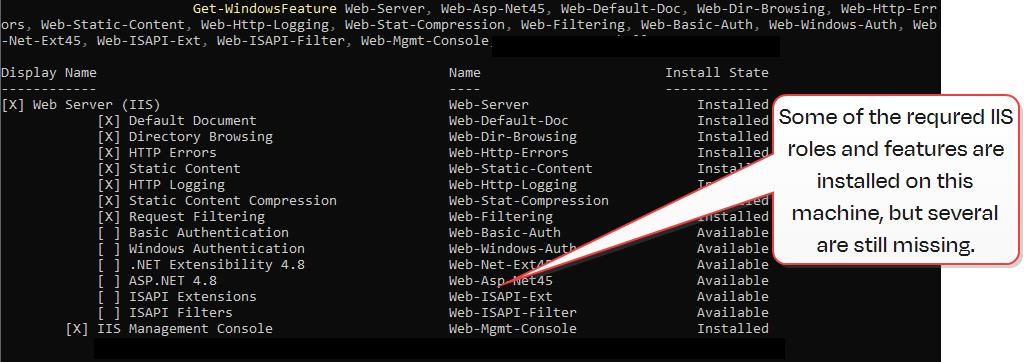

Figure 2: Use Get-WindowsFeature to Determine if All Required Roles and Features are Installed

Install IIS and Built-in ASP.NET using the Roles and Features Wizard

The following figures show the components of IIS and ASP.NET necessary to support Keyfactor SCEP on Windows Server 2016, Windows Server 2019, and 2022. Your Keyfactor SCEP server may have additional roles or features installed that are not shown in these figures. Install using either the Roles and Features Wizard or PowerShell (see Install IIS and Built-in ASP.NET using PowerShell).

Important:  Do not install the IIS WebDAV Publishing feature. Keyfactor SCEP will not operate correctly if this feature is installed.

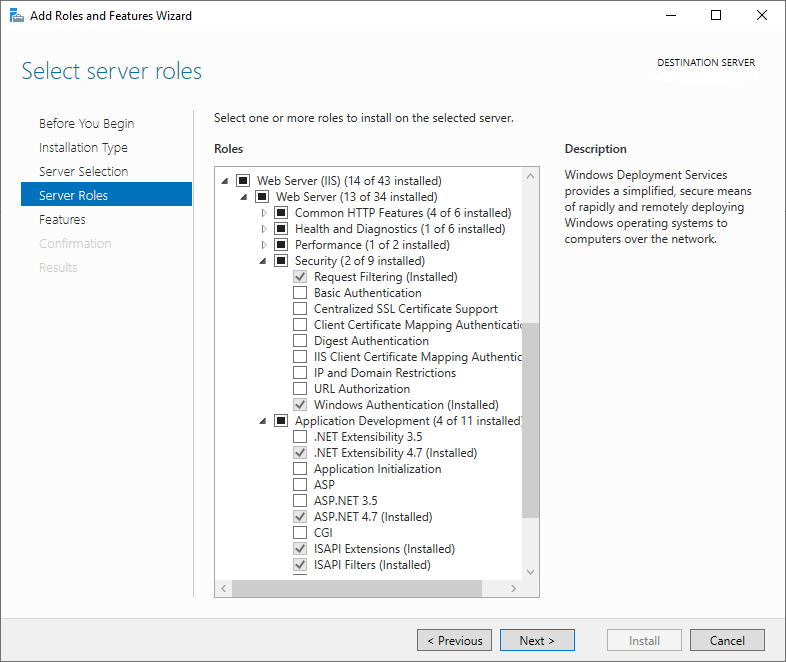

Figure 3: Required IIS Role Services for Keyfactor SCEP

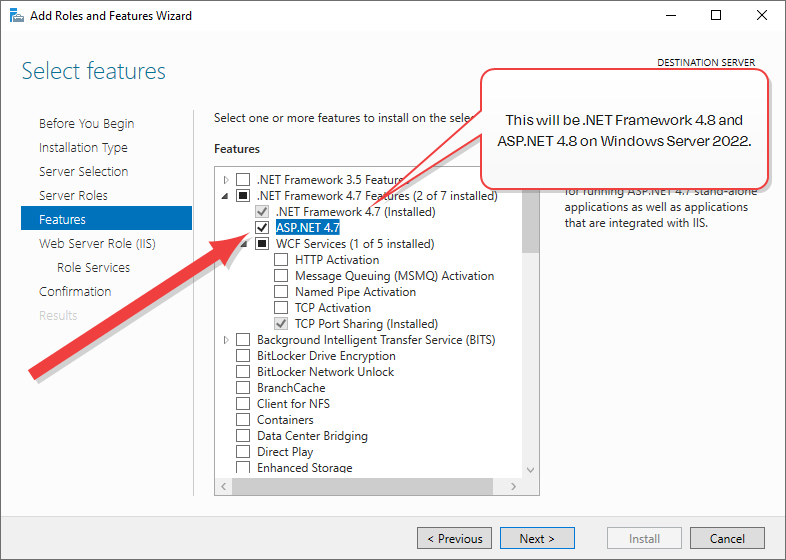

Figure 4: .NET 4.7 Feature

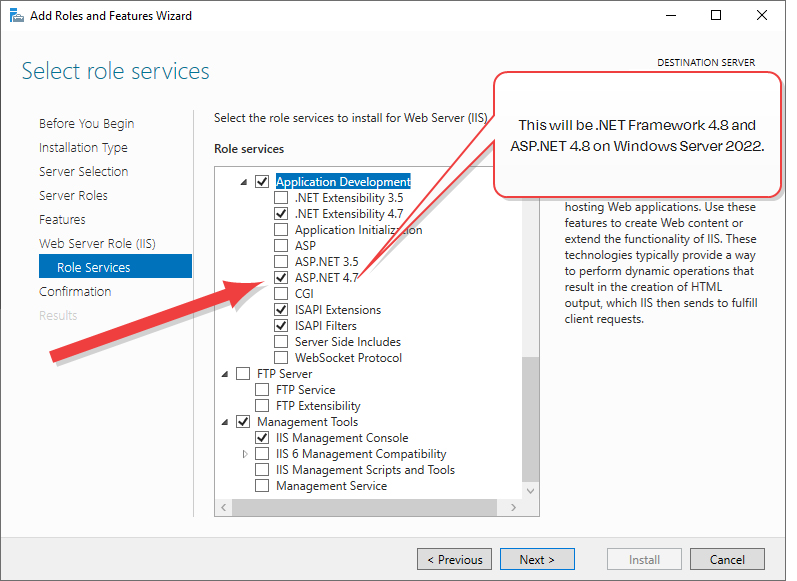

Figure 5: Role Services Page Two
