Keyfactor Command WebConsole Services

The WebConsole appsettings.json configuration file allows you to view or change the Keyfactor Command Management Portal installation configuration settings.

To update the appsettings.json file:

1. Navigate to the WebConsole\Configuration folder on your server, located by default at:

   C:\Program Files\Keyfactor\Keyfactor Platform\WebConsole\Configuration
2. Browse to open the appsettings.json file in a text editor (e.g. Notepad) and adjust the values as needed.
3. Save the files.

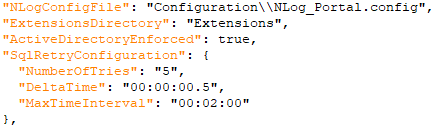

Table 84: Appsetting.json File Parameters - WebPortalServices

Setting	Description
NLog Config File	Enter the file path to the Nlog_Orchestrators.config file. The default is: C:\Program Files\Keyfactor\Keyfactor Platform\WebConsole\Configuration
Extensions Directory	Enter the file path to the extensions to be loaded by the extension loader (for registration handler, workflow step, etc... support). The default value is Extensions, for example: C:\Program Files\Keyfactor\Keyfactor Platform\WebConsole\Extensions
Active Directory Enforced	This should be set to false if you are not using Active Directory. An IIS reset will be required to apply this setting if you change it.
Sql Retry Configuration	SQL retry settings (see Keyfactor Command Changing SQL Retry Settings for more information). Setting Description Number Of Tries The number of times it will try the connection before an exception is thrown Delta Time The preferred gap time (in seconds) to delay before retry Max Time Interval The maximum gap time (in seconds) for each delay time before retry
