Denied Certificate Request Alert Operations

1. In the Management Portal, browse to Alerts > Denied Request.
2. On the Denied Certificate Requests Alerts page, click Add at the top of the grid to create a new alert, or click Edit to modify an existing one (Edit is also available from the right click menu).

3. In the Denied Certificate Request Alert Settings dialog, select your Certificate Template (or select All Templates) in the first dropdown.

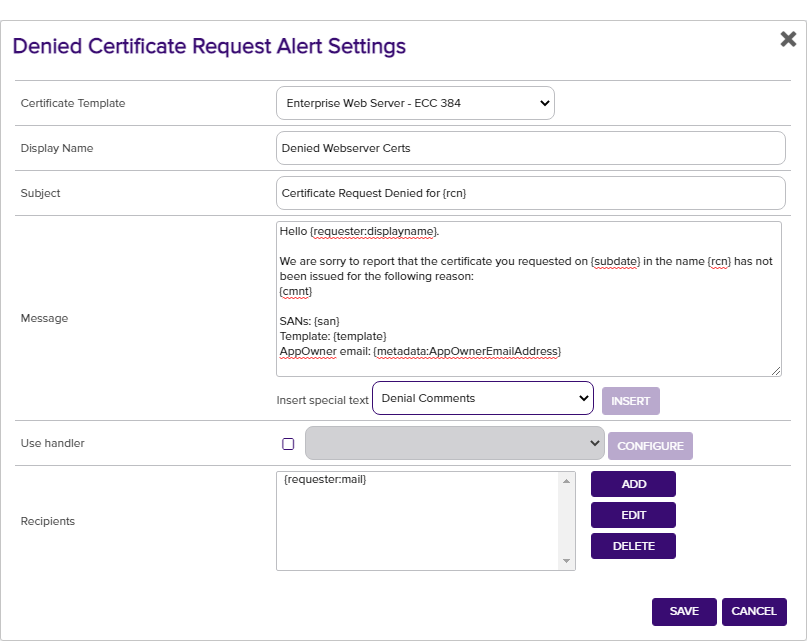

   Figure 129: Create a New Denied Certificate Request Alert

4. In the Display Name field, enter a name for the alert. This name appears in the list of denied certificate request alerts in the Management Portal.

5. In the Subject field, enter a subject line for the email message that will be delivered when the alert is triggered. You can use substitutable special text in the subject line. Substitutable special text uses a variable in the alert definition that is replaced by data from the certificate or certificate metadata Metadata provides information about a piece of data. It is used to summarize basic information about data, which can make working with the data easier. In the context of Keyfactor Command, the certificate metadata feature allows you to create custom metadata fields that allow you to tag certificates with tracking information about certificates. at processing time. For example, you can enter {rcn} in the alert definition and each alert generated will contain the specific requested common name A common name (CN) is the component of a distinguished name (DN) that represents the primary name of the object. The value varies depending on the type of object. For a user object, this would be the user's name (e.g. CN=John Smith). For SSL certificates, the CN is typically the fully qualified domain name (FQDN) of the host where the SSL certificate will reside (e.g. servername.keyexample.com or www.keyexample.com). of the given request instead of the variable {rcn}.

   To add substitutable special text to the subject line; place your cursor where you would like the text to appear on the subject line, select the appropriate variable from the Insert special text dropdown, and click Insert. Alternately, type the special text variable enclosed in curly braces (e.g. {cn A common name (CN) is the component of a distinguished name (DN) that represents the primary name of the object. The value varies depending on the type of object. For a user object, this would be the user's name (e.g. CN=John Smith). For SSL certificates, the CN is typically the fully qualified domain name (FQDN) of the host where the SSL certificate will reside (e.g. servername.keyexample.com or www.keyexample.com).}).

6. In the Message box, enter the body of the email message that will be delivered when the alert is triggered. You can use the Insert special text dropdown below the message window to add substitutable special text to the message. The metadata that appears in the dropdown will depend upon the custom metadata you have defined (see Certificate Metadata). Place your cursor where you would like the text to appear, select the appropriate variable from the dropdown, and click Insert. Alternately, you can type the special text variable enclosed in curly braces directly. In addition to the substitutable special text fields available in the dropdown, you can also build your own substitutable fields for the requester based on string values from the user or computer Active Directory record. See Table 12: Substitutable Special Text for Denied Certificate Request Alerts. If desired, you can format the message body using HTML.
7. The Denial Comments substitutable special text field is an important one to include in your alert intended for the requester of the certificate. This provides the comment the administrator made at the time he or she denied the certificate request (see Certificate Requests).

8. Check the Use handler box if you would like the alert to trigger an event handler at processing time, select the appropriate handler in the dropdown, and click the Configure button to configure the event handler. See Event Handler Registration for more information on using event handlers.

   Note:  As of version 9.0 of Keyfactor Command, PowerShell scripts for alert handlers need to be in the extension path or a subdirectory of it specified by the Extension Handler Path application setting (see Application Settings: Console Tab). By default this is:

   C:\Program Files\Keyfactor\Keyfactor Platform\ExtensionLibrary\

   For example, create a directory called Scripts under the ExtensionLibrary directory and then reference your PowerShell script as Scripts\MyPowerShell.ps1. Any scripts referenced by PowerShell handlers that are outside this path will fail to run.

9. In the Recipients section of the page, click Add to add a recipient to the alert. Each alert can have multiple recipients. Recipients should be added one at a time. You can enter specific email addresses and/or use substitutable special text to replace an email address variable with actual email addresses at processing time. There are three built-in variables that can be selected in the Recipient dialog Use a variable from the certificate request dropdown. In addition, you can type a special text variable enclosed in curly braces in the Email field if you have, for example, a metadata field that contains an email address.

   Keyfactor Command sends SMS (text) messages by leveraging the email to text gateways that many major mobile carriers provide. Check with your carrier for specific instructions. Keyfactor has tested that AT&T can be addressed using 10-digit-number@txt.att.net (e.g. 4155551212@txt.att.net) and Verizon can be addressed using 10-digit-number@vtext.com (e.g. 2125551212@vtext.com). T-Mobile can be addressed using 10-digit-number@tmomail.net (e.g. 2065551212@tmomail.net), but functionality can be spotty. Reliability of alerting via this method depends on the reliability of the carrier’s gateways.

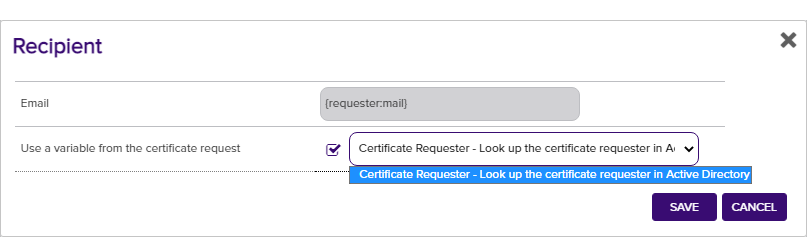

   Figure 130: Denied Certificate Request Alerts Recipients

10. Click Save to save your denied certificate request alert.

You may use the copy operation to create multiple similar alerts—for example, one to the requester of the certificate and another with a different message to the application owner for whom it was intended.

1. In the Management Portal, browse to Alerts > Denied Request.
2. On the Denied Certificate Requests Alerts page, highlight the row in the denied certificate request alerts grid and click Copy at the top of the grid, or from the right click menu.
3. The Denied Certificate Request Alert Settings dialog will pop-up with the details from the selected alert. The display name field will have - Copy tagged to the end of it to indicate it is a new alert. You may modify the alert as needed and click Save to add the new alert, or Cancel to cancel the operation.

1. In the Management Portal, browse to Alerts > Denied Request.
2. On the Denied Certificate Requests Alerts page, highlight the row in the denied certificate request alerts grid and click Delete at the top of the grid, or from the right click menu.
3. On the Confirm Operation alert, click OK to confirm or Cancel to cancel the operation.
