Incremental Release 9.2 Notes

October 2021

New Features

Updates and Improvements

• CA Management with PAM

  When configuring the Use Explicit Credentials option on a CA A certificate authority (CA) is an entity that issues digital certificates. Within Keyfactor Command, a CA may be a Microsoft CA or a Keyfactor gateway to a cloud-based or remote CA., you can now choose a PAM provider as the storage location for the credential password or the Keyfactor secrets table.

• Logi Analytics License

  A new license for Logi Analytics is required as the previous version is expiring. The 9.2 release includes the license update. Please see Updating Logi Analytics License for more information.

• CSR Parsing Containing Spaces

  CSRs containing spaces can now be parsed successfully during enrollment Certificate enrollment refers to the process by which a user requests a digital certificate. The user must submit the request to a certificate authority (CA)..

• Robust SSL Certificate Parsing Error Handling

  Certificates that fail to be parsed during SSL TLS (Transport Layer Security) and its predecessor SSL (Secure Sockets Layer) are protocols for establishing authenticated and encrypted links between networked computers. scanning are now logged but do not cause the entire scan to immediately fail.

• Robust Alert Failure Error Handling

  A failure processing an alert no longer prevents processing of subsequent alerts.

• Hidden Metadata Enrollment Fields

  Metadata Metadata provides information about a piece of data. It is used to summarize basic information about data, which can make working with the data easier. In the context of Keyfactor Command, the certificate metadata feature allows you to create custom metadata fields that allow you to tag certificates with tracking information about certificates. fields which are hidden during the enrollment process are now displayed properly in the resulting certificate details.

• Collection-based Reports Failing

  Reports based on collections containing Revocation, Certificate State or Common Name A common name (CN) is the component of a distinguished name (DN) that represents the primary name of the object. The value varies depending on the type of object. For a user object, this would be the user's name (e.g. CN=John Smith). For SSL certificates, the CN is typically the fully qualified domain name (FQDN) of the host where the SSL certificate will reside (e.g. servername.keyexample.com or www.keyexample.com). no longer fail.

• Incorrect CSR Enrollment CA

  The proper forest An Active Directory forest (AD forest) is the top most logical container in an Active Directory configuration that contains domains, and objects such as users and computers. certificate authority is used for enrollment when using the API to enroll via CSR A CSR or certificate signing request is a block of encoded text that is submitted to a CA when enrolling for a certificate. When you generate a CSR within Keyfactor Command, the matching private key for it is stored in Keyfactor Command in encrypted format and will be married with the certificate once returned from the CA..

• Denied Alerts Template

  The Denied Certificate Request alerts are once again properly scoped to the selected template A certificate template defines the policies and rules that a CA uses when a request for a certificate is received.. This was a regression from a previous release.

• Java & C Agent Inventory Error

  An error was corrected in which an error was thrown if no entry updates were returned during inventory processing.

• Orchestrator/Agent Re-Enrollment Error

  Fixed an issue in which an object reference error was thrown during re-enrollment operations.

• Orchestrator Ceases Processing after Batch Submission

  Corrected an issue in which the orchestrators would cease processing after submission of a large batch of SSL results.

Updating Logi Analytics License

Logi is a 3rd party BI tool which is used by Keyfactor Command for its dashboard and report features. The license required for Logi is integrated into Keyfactor Command and resides within the product’s Logi folder. The license’s current term is 3 years with a 7-day grace period after expiration. During that grace period, an alert will appear, and a new license should be used to remediate the issue. Here are two examples:

• License close to expiration:



  Figure 581: Keyfactor Logi License Expiration Alert

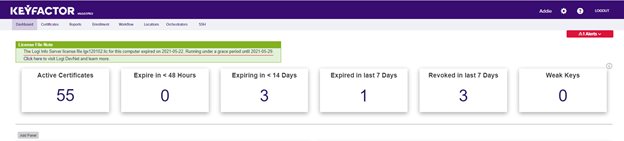

  Dashboard:



  Figure 582: Keyfactor Logi License Expiration Alert on the Dashboard

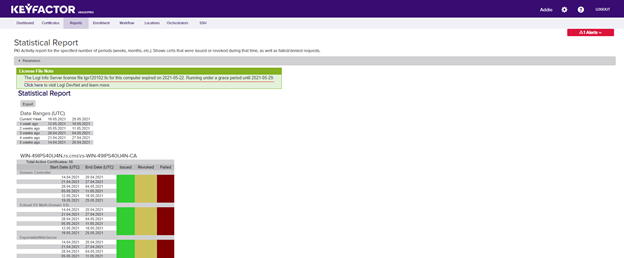

  Report:



  Figure 583: Keyfactor Logi License Expiration Alert on Report

• Expired license:

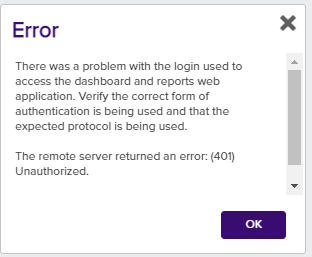

  The Dashboard and Reporting capability is not available with an error message displayed like the one below.



  Figure 584: Keyfactor Expired Logi Error Message

Solution

The updated license for Logi is included in release 9.2 and will be installed automatically as part of the upgrade to or fresh installation of this version. If you are not installing Keyfactor Command v9.2, replace the license manually as follows:

1. On your Keyfactor Command server, navigate to the Logi folder in your Keyfactor Command instance. By default, this is:

   C:\Program Files\Keyfactor\KeyfactorPlatform\Logi

   If you are on an earlier version of Keyfactor Command your license file will by default be found in the following directory:

   C:\Program Files\Certified Security Solutions\Certificate Management System\Logi]
2. The license file ends with an extension of .lic. Replace the license file with a valid one provided to you by Keyfactor. The license filename cannot be changed and should remain as "lgx120102.lic".

If the license has already expired, once it is replaced with a valid one and the browser is refreshed, the product will work as expected. The alert will no longer appear.

If you upgrade to a version of Keyfactor Command prior to v9.2 after replacing the license file, you will need to manually add the new license file again.

API Endpoint Change Log

The following changes were made to the API endpoints. Please review these carefully if you have implemented any integration using these endpoints.

Table 776: API Change Log

Endpoint	Methods	Action	Notes
/Certificates	GET	Fix	No longer fails if a collection The certificate search function allows you to query the Keyfactor Command database for certificates from any available source based on any criteria of the certificates and save the results as a collection that will be availble in other places in the Management Portal (e.g. expiration alerts and certain reports). id is not provided.
/OrchestratorJobs/JobHistory	GET	Fix	Request no longer fails for ‘Dynamic’ job types.
/Reports/Schedules/{id}	DELETE	Fix	Response code is now 200 when the user role does not have Modify – Report permission.
