Workflow Definition Examples

• Accounting
• E-Commerce
• HR
• IT
• Marketing
• R & D
• Sales

If the value of Department is anything other than Accounting, the value of Code (a string field) can be any value. If the value of Department is Accounting, anything submitted in the Code field by the end user is discarded and replaced by the fixed value for Code provided in the script.

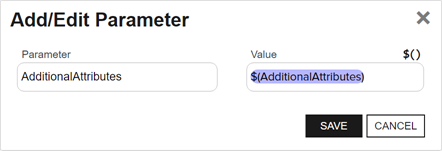

To create this, add Script Parameters to pull the additional attributes into the script as shown in Figure 216: Additional Attribute Update Example: Add Parameters

In the Insert PowerShell Script field, enter a script similar to the following:

# Declare your parameters at the beginning
param(
    [string]$AdditionalAttributes
)

# Parse incoming JSON into a PowerShell object
$attrs = $AdditionalAttributes | ConvertFrom-Json -AsHashtable

# Extract fields
$Department = $attrs['Department']
$Code       = $attrs['Code']

# If the value of Department is "Accounting", then the value of Code must be "G5N145"; override submitted value--if any--and use fixed value
if ($Department -eq 'Accounting') {
    $Code = 'G5N145'
}

# Write back updated values
$attrs['Department'] = $Department
$attrs['Code']       = $Code

# Return the updated attributes to the workflow in the original parameter as a hashtable
$result = @{ "AdditionalAttributes" = $attrs }
return $result

The updated attributes will be submitted to the CA A certificate authority (CA) is an entity that issues digital certificates. Within Keyfactor Command, a CA may be a Microsoft CA or a Keyfactor gateway to a cloud-based or remote CA. as part of the enrollment package and can be viewed in the workflow instance (see Viewing a Workflow Instance).

In the Insert PowerShell Script field, enter a script similar to the following:

# Declare your parameters at the beginning ($Comment, $SDate, and $Edate)
param(
   [string]$Comment,
   [datetime]$SDate,
   [datetime]$EDate
)

# Append your additional text to the existing comment along with the submission and effective dates
$Comment += " - Revocation requested on " + $SDate.ToString("g") + " and effective on " + $EDate.ToString("g")

# Return the updated comment to the workflow in the original parameter as a hashtable
$result = @{ "Comment" = $Comment }
return $result

The resulting comment will look something like:

You may reference the updated comment using the standard revocation comment token ($(cmnt)) in subsequent steps in your workflow and may view the updated comment wherever the revocation comment is available for viewing within Keyfactor Command.

This example uses a Set Variable Data step after the Require Approval step(s) in the workflow. The Set Variable Data step needs to come after the Require Approval step so that it can include comments gathered from the approve/deny requests.

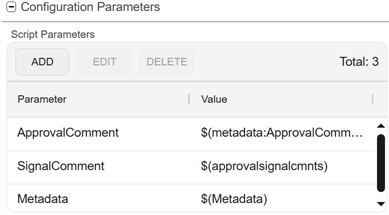

To create this, in the Set Variable Data step add Script Parameters to pull the current value of the ApprovalComments (or equivalent) metadata field, the approval signal comments entered when the approver(s) approve the request, and the full metadata set into the script as shown in Approval Comment Update Example: Add Parameters.

In the Insert PowerShell Script field, enter a script similar to the following::

# Declare your parameters at the beginning
param(
   [string]$ApprovalComment,
   [string]$SignalComment,
   [string]$Metadata
)

# Initialize a hashtable to contain your metadata fields and populate it
$UpdatedMetadata = @{}

$metaObject = $Metadata | ConvertFrom-Json -AsHashtable

foreach ($property in $metaObject.Keys) {
    $UpdatedMetadata[$property] = $metaObject[$property]
}

# Append your signal comment(s) to any existing comment in the ApprovalComments metadata field
if([string]::IsNullOrWhiteSpace($ApprovalComment)) {
   $UpdatedMetadata['ApprovalComments'] = $SignalComment
}else {
   $UpdatedMetadata['ApprovalComments'] = $ApprovalComment + ", " + $SignalComment
}

# Return the updated metadata fields, including ApprovalComments, to the workflow in the original parameter as a hashtable
$result = @{ "Metadata" = $UpdatedMetadata }
return $result

The resulting comment will look something like:

If the workflow requires multiple approvals or has multiple require approval steps, all the approval comments entered in the given workflow instance prior to the Set Variable Data step will be added to the metadata field. If you expect to have multiple comments, you may prefer to use a big text field rather than the string type fields shown here.

This step needs to be a Use Custom PowerShell step rather than a Set Variable Data step because it calls a PowerShell command (EventLog.WriteEntry) that exists outside the confines of Keyfactor Command.

To do this, first use the POST /Extension/Scripts API An API is a set of functions to allow creation of applications. Keyfactor offers the Keyfactor API, which allows third-party software to integrate with the advanced certificate enrollment and management features of Keyfactor Command. endpoint An endpoint is a URL that enables the API to gain access to resources on a server. (see POST Extensions Scripts) to import your PowerShell script into the Keyfactor Command database before beginning to edit your workflow. Your script file prior to import should contain content similar to the following:

# Declare your parameters at the beginning
param(
   [string]$cn,
   [string]$issuedDate,
   [string]$CA,
   [string]$expireDate,
   [string]$template
)

$LogName = "Application"
$Message = "The certificate in the name $cn issued on $issuedDate from $CA using the $template template will expire on $expireDate."
$Source = "Keyfactor Command"
# EventId 6050 is designated for alert event logging; category 3 is "Monitoring" on the Keyfactor Command server
$EventID = "6050"
$EventType = "Information"
$Category = 3

# Write the event log messages to the Keyfactor Command server
$eventLog = New-Object System.Diagnostics.EventLog
$eventLog.Log = $LogName
$eventLog.Source = $Source
$eventLog.WriteEntry($Message, $EventType, $EventID, $Category)

Once your PowerShell script has been imported into the Keyfactor Command database, you may begin creating your workflow. To create the Use Custom PowerShell step, add Script Parameters to pull the CN A common name (CN) is the component of a distinguished name (DN) that represents the primary name of the object. The value varies depending on the type of object. For a user object, this would be the user's name (e.g. CN=John Smith). For SSL certificates, the CN is typically the fully qualified domain name (FQDN) of the host where the SSL certificate will reside (e.g. servername.keyexample.com or www.keyexample.com)., issued date, CA, expiration date, and certificate template A certificate template defines the policies and rules that a CA uses when a request for a certificate is received. into the script.

In the PowerShell Script Name field dropdown, select the script you uploaded to the database.

In this example, the email is sent after the renewal step. This matters because during expiration renewal, the expiration alert workflow triggers a separate enrollment workflow if a renewal step is included. The renewal step itself doesn’t complete until the enrollment workflow finishes successfully. As a result, an email placed after the renewal step is sent only if the renewal enrollment succeeds.

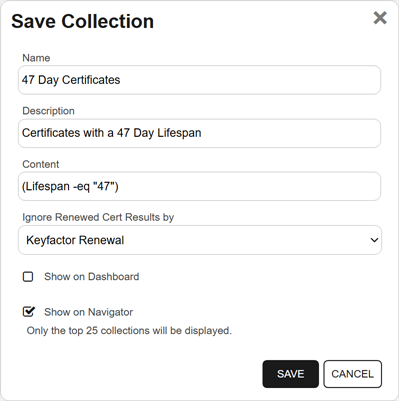

First, create a certificate collection containing certificates with a 47-day lifetime. This can be done using the Lifespan query parser:

Use the Keyfactor Renewal option in the Ignore Renewed Cert Results by dropdown. This allows only certificates that have not been renewed to be selected by the expiration alert.

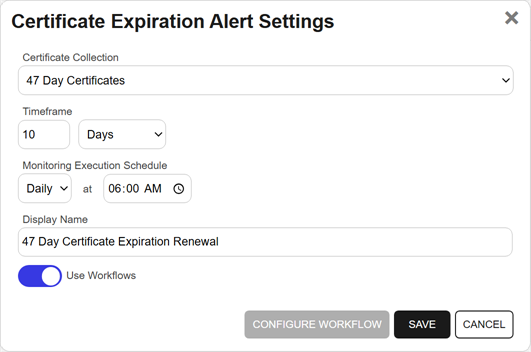

Next, create an expiration alert using the 47-day collection. Give it a Timeframe of 10 days. This will allow it to run 10 days before the certificates expire, assuming a daily execution schedule. Enable the Use Workflows option. When you save the alert, you will be prompted to create a workflow and automatically redirected to workflows.

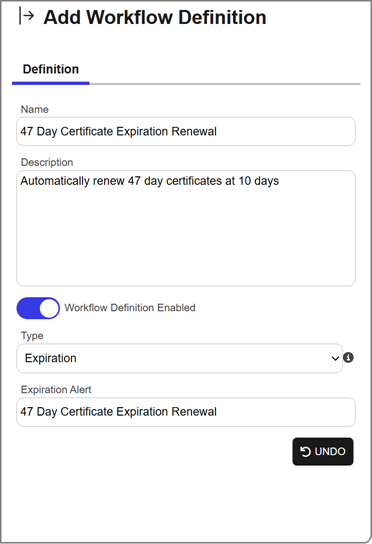

Now, configure your workflow. Most of the Definition information will be populated for you from the expiration alert.

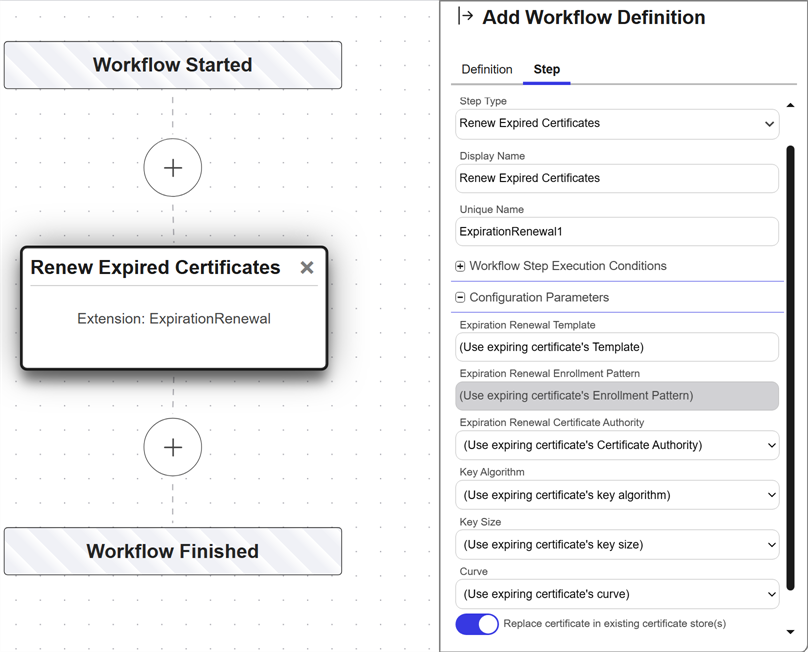

Add a Renew Expired Certificates step to the workflow. You can choose to accept the defaults of using the expiring certificate’s template, enrollment pattern, CA, and key information, or you can customize these. At the bottom of the step panel, choose whether to Replace certificate in existing certificate store(s). Enabling this allows the new certificate to be replaced in the managed certificate stores where the original certificate is found.

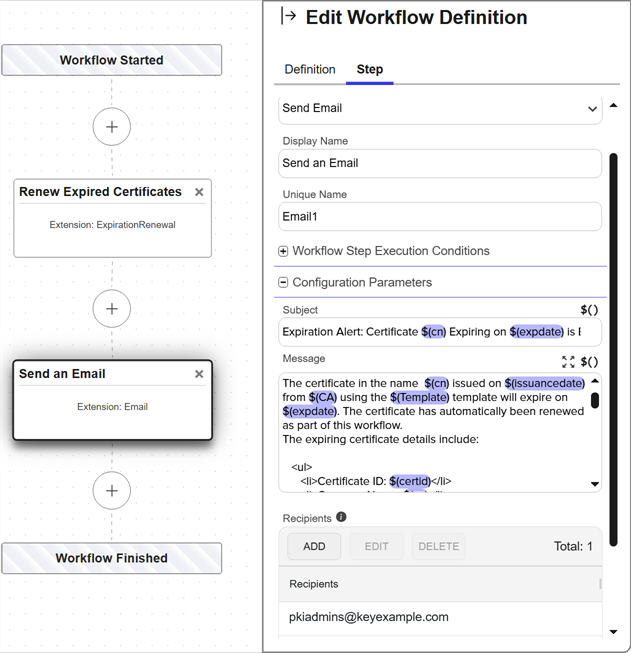

Lastly, create the Send Email step—if desired—after the renew step. This step is not required for functionality, but you may wishto inform users when a renewal takes place.

In the configuration parameters, give your email a Subject that will help highlight the information:

Expiration Alert: Certificate $(cn) Expiring on $(expdate) is Being Renewed

In the main Message of the email, provide the required information using tokens:

Hello,

The certificate in the name  $(cn) issued on $(issuancedate) from $(CA) using the $(Template) template will expire on $(expdate). The certificate has automatically been renewed as part of this workflow.
The expiring certificate details include:

   <ul>
      <li>Certificate ID: $(certid)</li>
      <li>Common Name: $(cn)</li>
      <li>Distinguished Name: $(dn)</li>
      <li>SANs: $(sans)</li>
      <li>Certificate Store Locations: $(locations)</li>
      <li>App Owner First Name: $(metadata:AppOwnerFirstName)</li>
      <li>App Owner Last Name: $(metadata:AppOwnerLastName)</li>
   </ul>

Thanks!
Your Certificate Management Tool

Add appropriate Recipients for the email.

Retrieve the Security Role Information

Create an Invoke REST Request step to retrieve data for the security role associated with the certificate owner specified in the enrollment request. Place this step before the Require Approval step in the workflow.

Configure the step with the following values.

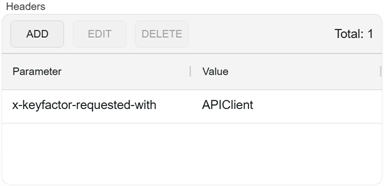

• Headers: The GET /Security/Roles/{id} endpoint is available in both version 1 and version 2. Because either version returns the required data, the version does not need to be specified in the request header; if omitted, version 1 is used by default.

  Copy

  {
     "x-keyfactor-requested-with": [
        "APIClient"
     ]
  }



  Figure 227: Retrieve Security Role Name: Add Headers for REST Request

• Variable to Store Response in: RoleResponse
• Verb: GET

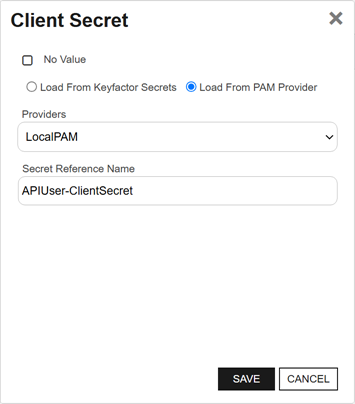

• Authentication: Configure authentication parameters appropriate to your environment (see Invoke REST Request and Invoke REST Request with OAuth).

• URL: The URL to the GET /Security/Roles/{id} endpoint. The $(OwnerRoleId) token resolves to the ID of the certificate owner role specified in the enrollment request. Replace keyfactor.keyexample.com with the name of your Keyfactor Command server.

  Copy

  https://keyfactor.keyexample.com/KeyfactorAPI/Security/Roles/$(OwnerRoleId)

• Content-Type: application/json

• Request Content: None. This endpoint does not require a request body.

Extract the Role Name

Create a PowerShell step to extract the security role name from the REST response and store it in a token used by the Require Approval step. Use a Set Variable Data step because the script only parses data returned by the workflow. A Use Custom PowerShell step can also be used if preferred.

Place this step after the Invoke REST Request step and before the Require Approval step.

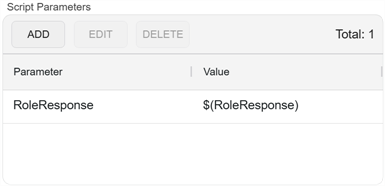

Add a Script Parameter that passes the raw REST response into the script.

In the Insert PowerShell Script field, enter a script similar to the following:

# Declare your parameters at the beginning
param(
    [string]$RoleResponse
)

# Extract security role name from response
$roleObj = $RoleResponse | ConvertFrom-Json
$RoleName = $roleObj.Name

# Return the security role name to the workflow as a hashtable
$result = @{ "ApproverRole" = $RoleName }
return $result

Configure the Require Approval Step

Create a Require Approval step and configure the values, including:

• Minimum Required Approvals: Enter a value of at least 1

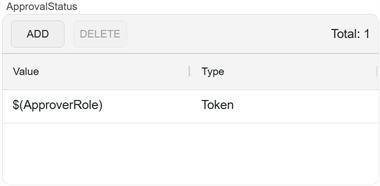

• Approval Status: In the Signals section, add at least one approver, with a value of the token returned by the PowerShell script, for example:

  $(ApproverRole)

Place this step after the Set Variable Data and Invoke REST Request steps and before the Enroll Step.

private key Private keys are used in cryptography (symmetric and asymmetric) to encrypt or sign content. In asymmetric cryptography, they are used together in a key pair with a public key. The private or secret key is retained by the key's creator, making it highly secure.

To do this, first create the PowerShell step. Here we use a Set Variable Data step since no functions need to be called outside the confines of Keyfactor Command, though you could use a Use Custom PowerShell step instead. The Set Variable Data step needs to come after the EnrollStep in the workflow. Add a Script Parameter A parameter or argument is a value that is passed into a function in an application. to pull the raw certificate into the script.

In the Insert PowerShell Script field, enter a script similar to the following:

# Declare your parameter at the beginning
param(
    [string] $RawCertificate
)

# Update certificate string with begin/end blocks
$RawCertificate = "-----BEGIN CERTIFICATE-----"+$RawCertificate+"-----END CERTIFICATE-----"

# Return the certificate to the workflow as a hashtable
$result = @{ "RawCertificateFormatted" = $RawCertificate }
return $result

If you wish to include the enrollment pattern name from the request in the email, next create the Invoke REST Request step with the following values:

• Headers: The GET /EnrollmentPatterns/{id} method has only a version 1, so the version does not need to be specified in the header.

  Copy

  {
     "x-keyfactor-requested-with": [
        "APIClient"
     ]
  }



  Figure 231: Retrieve Enrollment Pattern Name: Add Headers for REST Request

• Variable to Store Response in: EPResponse
• Verb: GET
• Authentication parameters appropriate to your authentication mechanism (see Invoke REST Request and Invoke REST Request with OAuth).

• URL: The URL to the GET /EnrollmentPatterns/{id}. Note that the $(EnrollmentPattern) token is provided in the URL to make the request on the specific enrollment pattern ID used for the enrollment request (keyfactor.keyexample.com is your Keyfactor Command server name).

  Copy

  https://keyfactor.keyexample.com/KeyfactorAPI/EnrollmentPatterns/$(EnrollmentPattern)

• Content-Type: application/json

• Request Content: None (The request is provided in the URL; there is no body for this endpoint.)

Next, create the send email step. In the configuration parameters, give your email a Subject that will help highlight the information:

Certificate Enrollment Complete for $(issuedcert:cn)

In the main Message of the email, provide the required information using tokens, including the certificate (see Substitutable Text Tokens for Workflow):

Hello,

A certificate using the $(template) template and the $(EPResponse.Name) enrollment pattern was requested by $(requester) from $(CA) on $(subdate).

The certificate details include:

<ul>
   <li>CN: $(request:cn)</li>
   <li>DN: $(request:dn)</li>
   <li>SANs: $(sans)</li>
</ul>

The certificate (without private key) is included here:

<blockquote>$(RawCertificateFormatted)</blockquote>

 Copy this text to a file using a text editor and save it as:

<blockquote>$(request:cn).crt</blockquote>

Thanks!
Your Certificate Management Tool

Delivery of private keys via email is not a secure practice. Emailing of certificates should be used only when the certificate file without private key is needed.

common name A common name (CN) is the component of a distinguished name (DN) that represents the primary name of the object. The value varies depending on the type of object. For a user object, this would be the user's name (e.g. CN=John Smith). For SSL certificates, the CN is typically the fully qualified domain name (FQDN) of the host where the SSL certificate will reside (e.g. servername.keyexample.com or www.keyexample.com).

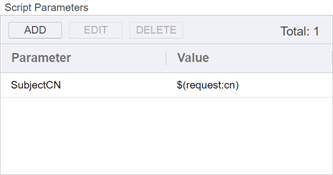

To do this, first create the PowerShell step. Here we use a Set Variable Data step since no functions need to be called outside the confines of Keyfactor Command, though you could use a Use Custom PowerShell step instead. Add a Script Parameter to pull the request CN into the script.

In the Insert PowerShell Script field, enter a script similar to the following:

# Declare your parameter at the beginning
param(
   [string]$SubjectCN
)

# Initialize a variable for the response
$shouldRun = @()

# Check to see if the requested CN ends with keyexample.com and require approval in the next step if it does not
$Suffix = "keyexample.com"

if ($SubjectCN.EndsWith($Suffix))
{
   $shouldRun = "False"
}else {
   $shouldRun = "True"
}

# Return the true/false value to the workflow as a hashtable
$result = @{ "shouldRun" = $shouldRun; }
return $result

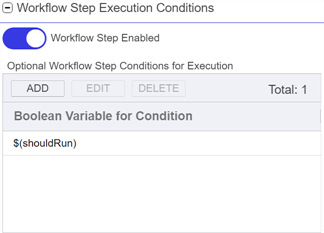

Next, create the require approval request step with $(shouldRun) as a condition like so:

This condition on the require approval step will cause the approvals configured in the step to be required only if the CN submitted in the request does not end with “keyexample.com”, so a request for “CN=mycert.keyother.com” will require approval but a request for “CN=mycert.keyexample.com” will not.

This step needs to be a Use Custom PowerShell step rather than a Set Variable Data step because it calls a PowerShell command (Resolve-DnsName) that exists outside the confines of Keyfactor Command.

To do this, first use the POST /Extension/Scripts API endpoint (see POST Extensions Scripts) to import your PowerShell script into the Keyfactor Command database before beginning to edit your workflow. Your script file prior to import should contain content similar to the following:

# Declare your parameters at the beginning ($InputCN, $Domain1, $Domain2, and $InputSANs)
param(
   [string]$InputCN,
   [string]$Domain1,
   [string]$Domain2,
   [string]$InputSANs
)

# Load incoming SANs into a hash table
$SANTable = $InputSANs | ConvertFrom-Json -AsHashtable

# Initialize variables for the two types of SANs we're handling
$DnsSans = @()
$IpSans = @()

# Check if SANTable has properties 'dns' and 'ip4' and assign if they exist
if ($SANTable.ContainsKey("dns") -and $SANTable["dns"]) {
    $DnsSans = $SANTable["dns"]
}

if ($SANTable.ContainsKey("ip4") -and $SANTable["ip4"]) {
    $IpSans = $SANTable["ip4"]
}

# Check to see if the incoming CN ends with keyexample.com and, if so, add some SANs.
$Suffix = "keyexample.com"

if ($InputCN.EndsWith($Suffix))
{
   # Load just the portion of the CN without the domain name into a variable.
   $CNName = $InputCN.SubString(0,$InputCN.Length - $Suffix.Length)

   # Do a lookup on the requested CN to find its IPv4 address.
   $IPResult = Resolve-DnsName -Name $InputCN -Type A -ErrorAction SilentlyContinue

   # If an address is found, add that address as a SAN.
   # Also add SANs built with the contents of Domain1, Domain2, and the leading part of the CN
   # (e.g., mycert.my-first-other-domain.com and mycert.my-second-other-domain.com).
   if ($IPResult -ne $null)
   {
      $SAN1 = $IPResult.IPAddress
      $SAN2 = $CNName + $Domain1
      $SAN3 = $CNName + $Domain2
      $DnsSans += $SAN2
      $DnsSans += $SAN3
      $IpSans += $SAN1
   }
   # If an IP address is not found, add only the SANs featuring Domain1 and Domain2.
   else {
      $SAN2 = $CNName + $Domain1
      $SAN3 = $CNName + $Domain2
      $DnsSans += $SAN2
      $DnsSans += $SAN3
   }
}

# Load the resulting IPv4 and DNS SANs into the SANS variable
$UpdatedSANs = @{}

if(![string]::IsNullOrWhiteSpace($DnsSans)) {
   $UpdatedSANs.dns = $DnsSans
}

if(![string]::IsNullOrWhiteSpace($IpSans)) {
   $UpdatedSANs.ip4 = $IpSans
}

# Return the updated SANs to the workflow as a hashtable (case matters in the return value name "SANs" in order
# to reload the results back into the SANs token)
$result = @{ "SANs" = $UpdatedSANs; }
return $result

Once your PowerShell script has been imported into the Keyfactor Command database, you may begin creating your workflow. To create the Use Custom PowerShell step, add Script Parameters to pull the $(request:cn) and $(sans) into the script as shown in Figure 234: Update SANs Example: Add Parameters, and add to static values to pass in your two additional domain names.

In the PowerShell Script Name field dropdown, select the script you uploaded to the database.

Your enrollment will complete using the updated list of SANs, including any SANs you added manually on the PFX A PFX file (personal information exchange format), also known as a PKCS#12 archive, is a single, password-protected certificate archive that contains both the public and matching private key and, optionally, the certificate chain. It is a common format for Windows servers. enrollment page or in the CSR A CSR or certificate signing request is a block of encoded text that is submitted to a CA when enrolling for a certificate. When you generate a CSR within Keyfactor Command, the matching private key for it is stored in Keyfactor Command in encrypted format and will be married with the certificate once returned from the CA.. You may reference the updated SANs using the formatted SANs token ( $(sansformattedprint) ) or standard SANs token ($(sans)) in subsequent steps in your workflow and may view the complete SAN list wherever the SANs are available for viewing within Keyfactor Command.

This example uses a REST Request step and an email step.

First, create the Keyfactor-Enroll step. The steps described below must come after this.

Next, create the REST request step with the following values:

• Headers: The API version does not need to be stated since version 1 is the default.

  Copy

  {
     "x-keyfactor-requested-with": [
        "APIClient"
     ]
  }



  Figure 235: Extra Certificate Info Example: Add Headers for REST Request

• Variable to Store Response in: MyResponse
• Verb: GET
• Authentication parameters appropriate to your authentication mechanism (see Invoke REST Request or Invoke REST Request with OAuth).

• URL: Note that the $(issuedcert:id) from the Keyfactor-Enroll step is provided in the URL (keyfactor.keyexample.com is your Keyfactor Command server name). You can choose to includeLocations=true and includeMetadata=true or not as needed for your environment.

  Copy

  https://keyfactor.keyexample.com/KeyfactorAPI/Certificates/$(issuedcert:id)?includeLocations=true&includeMetadata=true&collectionId=0

• Content-Type: application/json
• Request Content: None (The request is provided in the URL; there is no body for this endpoint.)

This REST step takes the certificate ID from the certificate acquired during the enroll step and submits it to the GET /Certificates/{id} endpoint. The response contains all the information from the certificate as a JSON string.

Next, create the Send Email step. In the configuration parameters, give your email a Subject that will help highlight the information:

Certificate Issued for $(request:cn)

In the main Message of the email, provide the required information using tokens, including the information retrieved from the GET /Certificates/{id} endpoint (see Substitutable Text Tokens for Workflow):

Hello,

A certificate using the $(template) template was requested by $(requester) from $(CA) on $(subdate).

The certificate details include:

   <ul>
      <li>CN: $(request:cn)</li>
      <li>DN: $(request:dn)</li>
      <li>SANs: $(sans)</li>
      <li>App Owner First Name: $(metadata:AppOwnerFirstName)</li>
      <li>App Owner Last Name: $(metadata:AppOwnerLastName)</li>
   </ul>

The key information for this certificate is:

   <ul>
      <li>Key Type: $(issuedcert:keytype)</li>
      <li>Alternate Key Type: $(MyResponse.AltKeyTypeString)</li>
      <li>Key Size: $(issuedcert:keysize)</li>
      <li>Curve: $(MyResponse.Curve)</li>
      <li>Signing Algorithm: $(MyResponse.SigningAlgorithm)</li>
      <li>Alternate Signing Algorithm: $(MyResponse.AltSigningAlgorithm)</li>
   </ul>

Thanks!
Your Certificate Management Tool

In the Recipients, add all the email recipients who should receive this information.

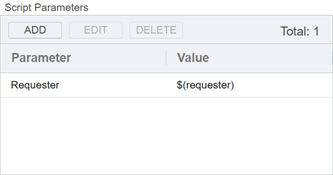

To do this, first create the PowerShell step. Here we use a Set Variable Data step (see Set Variable Data) since no functions need to be called outside the confines of Keyfactor Command other than those that are supported within Set Variable Data, though you could use a Custom PowerShell Script step instead. Add Script Parameters to pull the requester into the script (see Figure 236: Requester Lookup Example: Add Parameters).

In the Insert PowerShell Script field, enter a script similar to the following to build the query that we’ll use in the REST request:

# Declare your parameters at the beginning
param(
   [string]$Requester
)

#Convert the requester to JSON
$RequesterJSON = ($Requester | ConvertTo-Json)

# Build the query for the REST step
$Query = "Username -eq $RequesterJSON"

# Return the query to the workflow as a hashtable
$result = @{ "Query" = $Query }
return $result

Next, create the REST request step with the following values:

• Headers: The GET /SSH/Users method has a version 2 with additional features. To access version 2, this version must be specified in the header.

  Copy

  {
     "x-keyfactor-requested-with": [
        "APIClient"
     ],
     "x-keyfactor-api-version": [
        "2"
     ]
  }



  Figure 237: Requester Lookup Example: Add Headers for REST Request

• Variable to Store Response in: MyResponse
• Verb: GET
• Authentication parameters appropriate to your authentication mechanism (see Invoke REST Request).

• URL: The URL to the GET /SSH/Users endpoint with a query parameter specifying the requester’s name—the $(Query) token from the PowerShell step (keyfactor.keyexample.com is your Keyfactor Command server name).

  Copy

  https://keyfactor.keyexample.com/KeyfactorAPI/SSH/Users?QueryString=$(Query)

• Content-Type: application/json

• Request Content: None (The request is provided in the URL; there is no body for this endpoint.)

This REST step takes the Query built in the PowerShell step, containing the requester’s username, and submits it to the GET /SSH/Users endpoint. The response contains all the information from the user’s SSH key record.

Next, create the Send Email step. In the configuration parameters, give your email a Subject that will help highlight the information:

Certificate Enrollment Request for $(request:cn)

In the main Message of the email, provide the required information using tokens, including the information retrieved from the GET /SSH/Users endpoint (see Substitutable Text Tokens for Workflow):

Hello,

A certificate using the $(template) template was requested by $(requester) from $(CA) on $(subdate).

The certificate details include:

   <ul>
      <li>CN: $(request:cn)</li>
      <li>DN: $(request:dn)</li>
      <li>SANs: $(sans)</li>
      <li>App Owner First Name: $(metadata:AppOwnerFirstName)</li>
      <li>App Owner Last Name: $(metadata:AppOwnerLastName)</li>
   </ul>

The requester’s SSH information includes:

   <ul>
      <li>ID: $(MyResponse.Result[0].Key.Id)</li>
      <li>Email: $(MyResponse.Result[0].Key.Email)</li>
      <li>Comments: $(MyResponse.Result[0].Key.Comments.[*])</li>
   </ul>

Thanks!
Your Certificate Management Tool

In the Recipients, add all the email recipients who should receive this information.

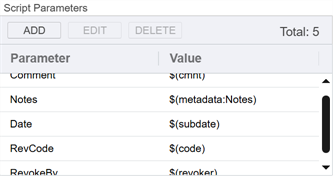

To do this, first create the PowerShell step. Here we use a Set Variable Data step (see Set Variable Data) since no functions need to be called outside the confines of Keyfactor Command, though you could use a Custom PowerShell Script step instead. Add Script Parameters to pull the revocation comment, submission date, revocation code, user making the revocation request, and the metadata field into which you will place your updated comment (Notes in this example) into the script. Figure 238: Metadata Update Example: Add Parameters shows only four of these. The metadata field Notes is a BigText type field in this example (see Metadata Field Operations).

In the Insert PowerShell Script field, enter a script similar to the following:

# Declare your parameters at the beginning ($Comment, $Notes, $RevCode, $Date, and $RevokeBy)
param(
   [string]$Comment,
   [string]$Notes,
   [string]$RevCode,
   [datetime]$Date,
   [string]$RevokeBy
)

# Append your additional text to the existing text in the metadata Notes field along with the revoker (removing
# the leading 'DOMAIN\' part for AD users), submission date, revocation code, and comment entered at revocation,
# and beginning the entry with a newline.
$Notes += "`nRevoked on " + $Date.ToString("MMMM d, yyyy") + " by " + $RevokeBy.SubString($RevokeBy.IndexOf('\')+1) + " with revocation option '" + $RevCode + "' and comment '" + $Comment + "'."

# Return the updated metadata Notes value as MyNotes to the workflow as a hashtable
$result = @{ "MyNotes" = $Notes }
return $result

Next, create the REST request step with the following values:

• Headers: The API version does not need to be stated since version 1 is the default.

  Copy

  {
     "x-keyfactor-requested-with": [
        "APIClient"
     ]
  }



  Figure 239: Metadata Update Example: Add Headers for REST Request

• Variable to Store Response in: No response is expected from this request. This value may be left blank.
• Verb: PUT
• Authentication parameters appropriate to your authentication mechanism (see Invoke REST Request or Invoke REST Request with OAuth).

• URL: The URL to the PUT /Certificates/Metadata endpoint, where keyfactor.keyexample.com is your Keyfactor Command server name.

  Copy

  https://keyfactor.keyexample.com/KeyfactorAPI/Certificates/Metadata

• Content-Type: application/json

• Request Content:

  Copy

  {
     "Id": "$(certid)",
     "Metadata": {
        "Notes": "$(MyNotes)"
     }
  }

This REST step takes the MyNotes output from the PowerShell step and updates the metadata Notes field to match that value. The resulting value in your Notes field will look something like this (assuming lines one, two and three were preexisting):

To do this, first create the REST request step with the following values:

• Headers: The PUT /Certificates/{id}/Owner method has only a version 1, so the version does not need to be specified in the header.

  Copy

  {
     "x-keyfactor-requested-with": [
        "APIClient"
     ]
  }



  Figure 241: Update Certificate Owner Example: Add Headers for REST Request

• Variable to Store Response in: No response is expected from this request. This value may be left blank.
• Verb: PUT
• Client ID: The ID of the client application created in the identity provider for use with this request.

• Client Secret: Click Set Client Secret, and in the Client Secret dialog, select the Load From PAM Provider radio button. In the Providers dropdown, select the name of your previously created Keyfactor Command local PAM PAM (Privileged Access Management): Controls privileged access by vaulting credentials, enforcing least-privilege/just-in-time access, rotating secrets, and auditing sessions. Across Keyfactor products, PAM protects diverse sensitive operations and secrets—for example certificate stores and CA credentials—via built-in or third-party providers; external integrations are delivered as custom PAM extensions (several published on Keyfactor’s public GitHub). database. In the Secret Reference Name field, enter the name of your previously created secret for the client’s secret.



  Figure 242: Update Certificate Owner Example: Use PAM for Client Secret

  Select the Load from PAM Provider radio button if you want to store the secret value in a Keyfactor Command local or supported third-party PAM solution (see Privileged Access Management (PAM)). Select a PAM provider in the Providers dropdown. The remaining fields on the dialog will vary depending on the PAM provider. For example:

  Keyfactor Command Local Database

  Select your Keyfactor Command local database provider in the Providers dropdown. The remaining field in the dialog will then be:

  • Secret Reference Name: The name given to the secret defined in Keyfactor Command (see Managing Secrets for a Local Keyfactor Command PAM Provider).

  CyberArk

  Select your CyberArk provider in the Providers dropdown (see Adding or Modifying a PAM Provider). The remaining fields in the dialog will then be:

  • PrivateArk Folder Name: The path and name of the folder that stores the secret (e.g., Root or Root\MyDir).
  • PrivateArk Protected Password Name: The name of the username or password to use for this instance.

  Delinea/Thycotic

  Select your Delinea/Thycotic provider in the Providers dropdown (see Adding or Modifying a PAM Provider). The remaining field in the dialog will then be:

  • Thycotic Secret ID: The numeric ID of the secret to retrieve from provider server.

  Hashicorp

  Select your Hashicorp Vault provider in the Providers dropdown (see Adding or Modifying a PAM Provider). The remaining fields in the dialog will then be:

  • KV Secret Key: The key of the secret to retrieve from the Hashicorp Vault.
  • KV Secret Name: The name of the secret to retrieve from the Hashicorp Vault.
• Token Endpoint: The token endpoint URL for the identity provider that will authenticate the request.
• Scope: The optional scope(s) for the identity provider that will authenticate the request.
• Audience: The optional audience value for the identity provider that will authenticate the request.

• URL: The URL to the PUT /Certificates/{id}/Owner endpoint. Note that the $(certid) token is provided in the URL to make the request on the specific certificate entering the collection (keyfactor.keyexample.com is your Keyfactor Command server name).

  Copy

  https://keyfactor.keyexample.com/KeyfactorAPI/Certificates/$(certid)/Owner

• Content-Type: application/json

• Request Content: Specify a security role (e.g., Power Users) to assign as the certificate owner. This security role must exist, and the user specified in Client ID must hold this role.

  Copy

  {
    "NewRoleName": "Power Users"
  }

This REST step takes the certificate ID of each certificate entering the collection and, using that, updates the certificate with the specified certificate owner. The certificate owner is updated to the new value whether it was blank previously or contained an alternate value previously.

This step needs to be a Use Custom PowerShell step rather than a Set Variable Data step because it calls a Keyfactor API method in a loop within the script. Since the API method needs to be called in a loop to retrieve multiple pieces of data, it’s not practical to do this as a separate Invoke REST Request step.

To do this, first outside of Keyfactor Command create your PowerShell script containing content similar to the following to retrieve the certificate store information based on the certificate store IDs available in the enrollment request:

# Declare your parameters at the beginning
param(
   [string]$StoreData,
   [string]$TimeData
)

# Pick one authentication mechanism for the Keyfactor API
# Basic authentication credentials to authenticate to the Keyfactor API
$user = 'KEYEXAMPLE\APIUser'
$pass = 'APIUserSuperSecretPassword'

# Encode Basic authentication credentials
$pair = "$($user):$($pass)"
$encodedCreds = [System.Convert]::ToBase64String([System.Text.Encoding]::ASCII.GetBytes($pair))
$basicAuthValue = "Basic $encodedCreds"

# Token authentication credentials to authenticate to the Keyfactor API (uncomment the below 9 lines and update appropriately to use token authentication)
#$TokenBody = @{
#   grant_type = "client_credentials"
#   client_id = "Keyfactor-API-Workflow-User"
#   client_secret = "WorkflowAPIClientSecret"
#}
#$TokenHeaders = @{
#   'Content-Type' = 'application/x-www-form-urlencoded'
#}
#$TokenURL = "https://appsrvr18.keyexample.com:1443/realms/Keyfactor/protocol/openid-connect/token"

# Request token from Keyfactor Identity Provider for token authentication (uncomment the below line to use token authentication)
#$TokenValue = Invoke-RestMethod -Method Post -Uri $TokenURL -Headers $TokenHeaders -Body $TokenBody

# Pick an authentication type for the header
$headerAuth = $basicAuthValue
#$headerAuth = "Bearer " + $TokenValue.access_token

# Build the headers for the API request
$headers = @{
   "Authorization"=$headerAuth
   "Accept"="application/json"
   "x-keyfactor-requested-with"="APIClient"
}

# Convert incoming data from JSON
$StoreDataInfo = $StoreData | ConvertFrom-Json
$TimeDataInfo = $TimeData | ConvertFrom-Json

# Initialize Variables introduced in script
$JobTime = ""
$JobTimeHuman = ""
$TimeMessage = ""
$StoreMessage = ""
$StoreList = New-Object System.Collections.Generic.List[System.Object]
$CommandServer = 'keyfactor.keyexample.com'

# Evalulate the scheduled delivery time for the certificate store management job, if present, and populate a return message based on the content
if ("Immediate" -in $TimeDataInfo.PSobject.Properties.Name)
{
   $TimeMessage = "The certificate has been scheduled to be delivered at the next orchestrator run."
}
elseif ("ExactlyOnce" -in $TimeDataInfo.PSobject.Properties.Name)
{
   # Convert the certificate store job time to a human readable date/time
   $JobTime = [DateTime]($TimeDataInfo.ExactlyOnce.Time)
   $JobTimeHuman = $JobTime.ToString("M/dd/yyyy h:mm tt")
   $TimeMessage = "The certificate has been scheduled to be delivered at the following time: $JobTimeHuman."
}
else
{
   $TimeMessage = " "
}

# Pull out the display names of the certificate stores based on the store IDs in the incoming store info
foreach ($Store in $StoreDataInfo){
   $response = Invoke-WebRequest -Uri "https://$($CommandServer)/KeyfactorAPI/CertificateStores/$($store.StoreId)" -Method:Get -Headers $headers `
      -ContentType "application/json" -ErrorAction:Stop -TimeoutSec 60
   $responseContent = $response.Content | ConvertFrom-Json

   #Add the store to the store list
   $StoreList.Add($responseContent.DisplayName)
}

# Evaluate whether any stores were returned and build a message that includes the store list if so, and an alternate message if not
if ($StoreList.Count -gt 0)
{
   $StoreMessage = "If approved, the certificate will be delivered to the following stores:<br /><br />" + ($StoreList -join "<br />")
}
else
{
   $StoreMessage = "If approved, the certificate will be available for download in the Keyfactor Command Management Portal. It has not been scheduled for delivery to any certificate stores."
}

# Return the time message and store message to the workflow as a hashtable
$result = @{ "TimeMessage" = $TimeMessage; "StoreMessage" = $StoreMessage }
return $result

Next, use the POST /Extension/Scripts API endpoint (see POST Extensions Scripts) to import your PowerShell script into the Keyfactor Command database before beginning to edit your workflow.

Once your PowerShell script has been imported into the Keyfactor Command database, you may begin creating your workflow. To create the Use Custom PowerShell step, add Script Parameters to pull the certificate store data—$(Stores)—and schedule time for the management job to add the certificate to the certificate stores—$(ManagementJobTime)—into the script as shown in Figure 243: Use Custom PowerShell with Embedded REST Request: Add Parameters. The $(Stores) and $(ManagementJobTime) tokens are not among those that appear in the dropdown.

In the PowerShell Field Name field, in the dropdown select the script you uploaded to the database.

Next, create the Send Email step. In the configuration parameters, give your email a Subject that will help highlight the request:

ACTION REQUIRED: Certificate Enrollment Request for $(request:cn)

This tells your users that they need to do something and includes the CN of the requested certificate in the subject line.

In the main Message of the email, tell your users what they need to do and provide the information from the request that will allow them to make an informed decision using tokens (see Substitutable Text Tokens for Workflow) and the certificate store information returned from the PowerShell script:

Hello,

A certificate using the $(template) template was requested by $(requester) from $(CA) on $(subdate). $(StoreMessage)

$(TimeMessage)

The certificate details include:

   <ul>
      <li>CN: $(request:cn)</li>
      <li>DN: $(request:dn)</li>
      <li>SANs: $(sans)</li>
      <li>App Owner First Name: $(metadata:AppOwnerFirstName)</li>
      <li>App Owner Last Name: $(metadata:AppOwnerLastName)</li>
   </ul>

Please review this request and issue the certificate as appropriate by going here:

$(reviewlink)

Thanks!
Your Certificate Management Tool

In the Recipients, add all the email recipients who could possibly approve or deny the request.

Now create your Require Approval step. The step does not need any Conditions. In the Configuration Parameters, enter a value of at least 1 for the Minimum Required Approvals. Give the Denial Email Subject a value something like:

Certificate Enrollment Request Denied for $(request:cn)

And the Approval Email Subject a value something like:

Certificate Enrollment Request Approved for $(request:cn)

Enter an appropriate message for the Denial Email Message. You may use tokens, including the returned values from the PowerShell script. You may want to deliver this message to the requester, so a message similar to this might be appropriate:

Hello,

The certificate you requested on $(subdate) in the name $(request:cn) has not been issued for the following reason:

$(approvalsignalcmnts)

The certificate details include:

   <ul>
      <li>CN: $(request:cn)</li>
      <li>DN: $(request:dn)</li>
      <li>SANs: $(sans)</li>
      <li>App Owner First Name: $(metadata:AppOwnerFirstName)</li>
      <li>App Owner Last Name: $(metadata:AppOwnerLastName)</li>
   </ul>

For assistance, please contact <a href="mailto:support@keyexample.com">support@keyexample.com</a>.

Thanks!
Your Certificate Management System

Enter an appropriate message for the Approval Email Message. This message would also likely go to the requester and might look similar to:

Hello,

The certificate you requested in the name $(request:cn) on $(subdate) was successfully approved with the following comment:

$(approvalsignalcmnts)

The certificate details include:

   <ul>
      <li>CN: $(request:cn)</li>
      <li>DN: $(request:dn)</li>
      <li>SANs: $(sans)</li>
      <li>App Owner First Name: $(metadata:AppOwnerFirstName)</li>
      <li>App Owner Last Name: $(metadata:AppOwnerLastName)</li>
   </ul>

You will receive an update when it has been issued. For assistance, please contact <a href="mailto:support@keyexample.com">support@keyexample.com</a>.

Thanks!
Your Certificate Management System

In the Recipients for both the approval and denial emails, enter a value that would include the requester’s email (e.g., a group). In Active Directory environments, you can use the ($requester:mail) token. If you’re using OAuth, you can add another PowerShell step or REST step to retrieve the requester’s email from your identity provider, if the value is stored there.

In the Signals for the Require Approval step, select the security role(s) to which the users responsible for approving or denying the request belong.

Finish off the workflow process by configuring an issued certificate request alert to let the requester know when the certificate has been issued (see Issued Certificate Request Alerts).

This example uses a Use Custom PowerShell step (see Use Custom PowerShell) because the example script provided calls functions that cannot operate within the confines of Keyfactor Command. Then an Update Certificate Subject\SANs for Microsoft CAs step is used to re-sign the request before it is submitted to the CA.

First, use the POST /Extension/Scripts API endpoint (see POST Extensions Scripts) to import your PowerShell script into the Keyfactor Command database before beginning to edit your workflow. Your script file prior to import should contain content similar to the following:

# Declare your parameters at the beginning
param(
   [string]$CSRSubject,
   [string]$CSRSANs,
   [string]$OriginalDomain,
   [string]$NewDomain
)

# Load incoming SANs into a hash table
$SANTable = $CSRSANs | ConvertFrom-Json -AsHashtable

# Initialize variable for the dns SANs
$dnsList = @()

# Load original subject in NewSubject for the else case
$NewSubject = $CSRSubject

# Replace escaped commas in the subject temporarily with a string to facilitate splitting
$TempString = "######"
$CleanSubject = $CSRSubject -replace "\\,", $TempString

# Split the incoming Subject string into its component values
$SplitSubject = $CleanSubject.Split(',')

# Initialize variables for the components of the subject
$SubjectCN = @()
$SubjectO = @()
$SubjectOU = @()
$SubjectL = @()
$SubjectST = @()
$SubjectC = @()
$SubjectE = @()

# Load subject values
foreach($element in $SplitSubject){
   $SplitElement = $element.Split('=')
   Switch($SplitElement[0]){
      "CN" {$SubjectCN = $SplitElement[1]}
      "O" {$SubjectO = $SplitElement[1]}
      "OU" {$SubjectOU = $SplitElement[1]}
      "E" {$SubjectE = $SplitElement[1]}
      "L"{$SubjectL = $SplitElement[1]}
      "ST"{$SubjectST = $SplitElement[1]}
      "C"{$SubjectC = $SplitElement[1]}
   }
}

# Check to see if the incoming CN ends with $OriginalDomain and, if so, add it as a SAN with $NewDomain and update the Subject with $NewDomain (assumes non-null CN)
if ($SubjectCN.EndsWith($OriginalDomain))
{
   # Load just the portion of the CN without the domain name into a variable
   $CNName = $SubjectCN.SubString(0,$SubjectCN.Length - ($OriginalDomain.Length + 1)) # +1 to account for the '.'

   # Build new DNS SAN
   $NewSAN = $CNName + "." + $NewDomain

   # Check if SANTable has property 'dns' and assign if so
   if ($SANTable.ContainsKey("dns") -and $SANTable["dns"]) {
       $dnsList = $SANTable["dns"]
   }

   if ($dnsList -notcontains $NewSAN) {
      $dnsList += $NewSAN
   }

   # Load the resulting IPv4 and updated DNS SANs into the updated SANs variable
   $UpdatedSANs = @{}

   if(![string]::IsNullOrWhiteSpace($dnsList)) {
       $UpdatedSANs.dns = $dnsList
   }

   if(![string]::IsNullOrWhiteSpace($SANTable["ip4"])) {
      $UpdatedSANs.ip4 = $SANTable["ip4"]
   }

   # Build new Subject with $NewDomain
   $NewSubject = "";

   if(![string]::IsNullOrWhiteSpace($SubjectCN)){
      $NewSubject += "CN=" + $CNName + "." + $NewDomain + ","
   }

   if(![string]::IsNullOrWhiteSpace($SubjectO)){
      $NewSubject += "O=" + $SubjectO + ","
   }

   if(![string]::IsNullOrWhiteSpace($SubjectOU)){
      $NewSubject += "OU=" + $SubjectOU + ","
   }

   if(![string]::IsNullOrWhiteSpace($SubjectL)){
      $NewSubject += "L=" + $SubjectL + ","
   }

   if(![string]::IsNullOrWhiteSpace($SubjectST)){
      $NewSubject += "ST=" + $SubjectST + ","
   }

   if(![string]::IsNullOrWhiteSpace($SubjectC)){
      $NewSubject += "C=" + $SubjectC + ","
   }

   if(![string]::IsNullOrWhiteSpace($SubjectE)){
      $NewSubject += "E=" + $SubjectE + ","
   }

   $NewSubject = $NewSubject.Remove($NewSubject.Length - 1) # remove the last ','

   # Replace temporary string with escaped commas in Subject
   $NewSubject = $NewSubject -replace $TempString, "\,"
}

# Return the updated subject and SANs as NewSubject and NewSANs to the workflow as a hashtable
$result = @{ "Subject" = $NewSubject; "SANs" = $UpdatedSANs }
return $result

Once your PowerShell script has been imported into the Keyfactor Command database, you may begin creating your workflow. To create the Use Custom PowerShell step, add Script Parameters to pull the $(request:dn A distinguished name (DN) uniquely identifies an entry in an LDAP/X.500 directory by specifying a sequence of relative distinguished names (attribute=value pairs) from the entry up to the directory root. It’s written as a comma-separated string—for example: cn=Alice,ou=People,dc=keyexample,dc=com—with the specific attributes defined by the directory’s schema.) and $(sans) into the script as shown in Metadata Update Example: Add Parameters and add two static values to pass in your two domain names.

In the PowerShell Script Name field dropdown, select the script you uploaded to the database.

Add an Update Certificate Request Subject\SANs for Microsoft CAs step at a point in the workflow after your PowerShell step but before the enroll step to allow the request to be re-signed before it is submitted to the Microsoft CA for enrollment. This step requires an enrollment agent certificate with private key used to re-sign the request (see Update Certificate Request Subject\SANs for Microsoft CAs).

Your enrollment will complete using the updated list of SANs, including any SANs you added manually on the PFX enrollment page or in the CSR, and the updated subject. You may reference the updated SANs using the standard SANs token ($(sans)) or formatted SANs token ( $(sansformattedprint) ) and updated subject using the standard DN token ($(request:dn)) in subsequent steps in your workflow and may view the subject and complete SAN list wherever the subject and SANs are available for viewing within Keyfactor Command.
