Before you can begin to use a third party PAM provider with Keyfactor Command, you need to acquire and install the appropriate custom-built PAM extension for your desired PAM provider from the Keyfactor GitHub:
To find a package on GitHub:
-

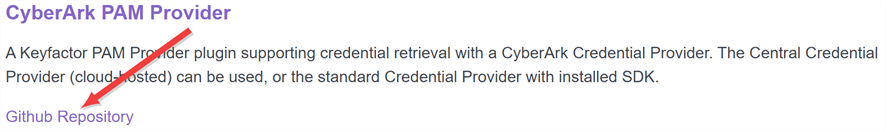

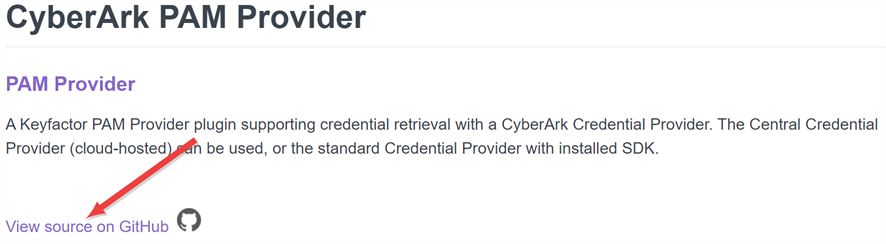

Visit the link above to find your desired package, and click either Github Repository or View source on GitHub to go to the package page on GitHub.
Figure 443: View Packages as Part of a List
Figure 444: View Packages on Individual Pages
-

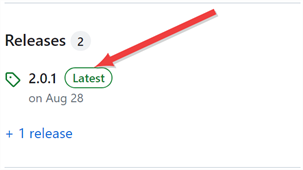

On the GitHub page, on the right-hand side, click the link for the Latest version.
Figure 445: Find the Latest Version of the Package
-

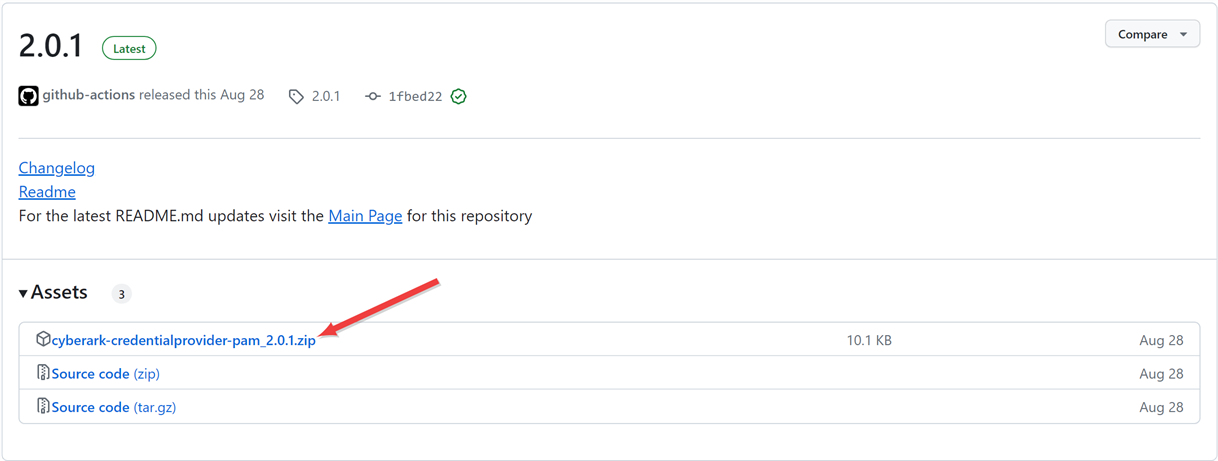

On the GitHub version page in the Assets section, click the package name to download the zip file.
Figure 446: Download the Package Zip File
- On the main extension GitHub page, review the documentation for the specific extension. Here you will find supported platforms, prerequisites, and extension-specific installation and configuration instructions. The below instructions only cover where to place the extension files on the CA
A certificate authority (CA) is an entity that issues digital certificates. Within Keyfactor Command, a CA may be a Microsoft CA or a Keyfactor gateway to a cloud-based or remote CA. connector or orchestrator Keyfactor orchestrators perform a variety of functions, including managing certificate stores and SSH key stores. and building custom manifest.json files (changes to which aren’t needed for extensions from GitHub unless you are customizing something), but not the details for creation of a PAM provider type in Keyfactor Command for the extension or any other customization specific to a given extension.
Remote PAM Extensions on the Keyfactor Universal Orchestrator Server (Windows or Linux)
To install a PAM extension on a Universal Orchestrator for use by that orchestrator only for a Windows or Linux install:
-
Using the Keyfactor API
An API is a set of functions to allow creation of applications. Keyfactor offers the Keyfactor API, which allows third-party software to integrate with the advanced certificate enrollment and management features of Keyfactor Command., add a PAM provider type in Keyfactor Command for the custom PAM extension. See the Adding a PAM Provider Type instructions for your selected PAM extension. The following is an example request body for a POST /PamProviders/Types request to create a PAM provider type for the Delinea extension:Copy{
"Name":"Delinea-SecretServer",
"Parameters":[
{
"Name": "Host",
"DisplayName":"Secret Server URL",
"InstanceLevel":false,
"DataType": "string"
},
{
"Name":"Username",
"DisplayName":"Secret Server Username",
"InstanceLevel":false,
"DataType": "secret"
},
{
"Name":"Password",
"DisplayName":"Secret Server Password",
"InstanceLevel":false,
"DataType": "secret"
},
{
"Name":"SecretId",
"DisplayName":"Secret Server Secret ID",
"InstanceLevel":true,
"DataType": "string"
},
{
"Name":"SecretFieldName",
"DisplayName":"Secret Field Name",
"InstanceLevel":true,
"DataType": "string"
}
]
} -
On the Universal Orchestrator server, locate the extensions directory within the install directory. By default, this is:
Windows: C:\Program Files\Keyfactor\Keyfactor Orchestrator\extensionsLinux: /opt/keyfactor/orchestrator/extensions - Under the extensions directory, create a new directory with an appropriate name for the PAM extension (e.g. CyberArk). This name is for reference only and does not need to match any names used elsewhere.
- Place the files you downloaded for the PAM extension in the new directory.
- In the directory for the PAM extension, locate the file called manifest.json. The manifest.json file should be placed in the same directory as the DLL(s) for the extension.
-
Using a text editor, edit the manifest.json file and configure it appropriately for the extension. See the Configuring the Client Side manifest.json File instructions for your selected PAM extension for exact details. The following Delinea manifest.json file is provided as an example. Things to note:
-
Areas in lines 4-6 and 10-14, below, will vary between manifest.json files.
-
Areas shown in red text are examples of items that need to be customized for your environment.
-
When you add your PAM provider into Keyfactor Command, the name you give it must match the name in the equivalent of your line 4 (for your manifest.json file), below (e.g. Delinea-SecretServer).
Copy{
"extensions": {
"Keyfactor.Platform.Extensions.IPAMProvider": {
"PAMProviders.Delinea-SecretServer.PAMProvider": {
"assemblyPath": "delinea-secretserver-pam.dll",
"TypeFullName": "Keyfactor.Extensions.Pam.Delinea.SecretServerPam"
}
}
},
"Keyfactor:PAMProviders:Delinea-SecretServer:InitializationInfo": {
"Host": "http://127.0.0.1:8200",
"Path": "v1/secret/data",
"Token": "xxxxxx"
}
} -
- Restart the Universal Orchestrator service (see Start the Universal Orchestrator Service).
Remote PAM Extensions on the Keyfactor Universal Orchestrator Server (Container)
To install a PAM extension on a Universal Orchestrator for use by that orchestrator only for a container install:
- Docker: Follow the instructions as per Custom Extensions with Docker referencing the PAM extension of your choosing.
-
Kubernetes without Helm: Follow the instructions as per Kubernetes Custom Extensions without Helm referencing the PAM extension of your choosing with the following addition:
-
In addition to the ConfigMap created for the extension-downloader, create a custom manifest.json file with an accompanying a ConfigMap:
kubectl create configmap custom-manifest-configmap --namespace keyfactor-orchestrators --from-file=manifest.json=/opt/kyf_orch1/manifest.json -
Reference this ConfigMap in your Kubernetes deployment file. For example, for Delinea (this shows only a portion of the file):
# Initial portion of file not shown spec: initContainers: # The below block provides an example of adding a custom extension - command: - /bin/sh - -c - python /tmp/install.py --extension delinea-secretserver-pam --version 1.0.1 --out /app/extensions/delinea-secretserver-pam image: python:3.11.10 imagePullPolicy: IfNotPresent name: extensiondownloader resources: {} terminationMessagePath: /dev/termination-log terminationMessagePolicy: File volumeMounts: - mountPath: /tmp name: extensiondownloader - mountPath: /app/extensions/delinea-secretserver-pam name: plugin containers: # Initial content of containers section not shown volumeMounts: - mountPath: /etc/ssl/certs/ca-certificates.crt name: root-ca readOnly: true subPath: ca-certificates.crt - mountPath: /app/extensions/delinea-secretserver-pam name: plugin readOnly: false - mountPath: /app/extensions/delinea-secretserver-pam/manifest.json name: custom-manifest readOnly: false subPath: manifest.json volumes: - configMap: items: - key: ca-certificates.crt path: ca-certificates.crt name: ca-roots name: root-ca - configMap: defaultMode: 420 name: extension-downloader-configmap name: extensiondownloader - emptyDir: {} name: plugin - configMap: items: - key: manifest.json path: manifest.json name: custom-manifest-configmap name: custom-manifest # Remainder of file not shown
-
-
Kubernetes with Helm: Follow the instructions as per Kubernetes Custom Extensions with Helm referencing the PAM extension of your choosing.
-
In addition to the ConfigMap created for the extension-downloader, create a custom manifest.json file with an accompanying a ConfigMap:
kubectl create configmap custom-manifest-configmap --namespace keyfactor-orchestrators --from-file=manifest.json=/opt/kyf_orch1/manifest.json -
Reference this ConfigMap in your Kubernetes deployment file. For example, for Delinea (this shows only a portion of the file):
# Initial portion of file not shown volumeMounts: - mountPath: /app/extensions/delinea-secretserver-pam name: plugin - mountPath: /app/extensions/delinea-secretserver-pam/manifest.json name: custom-manifest readOnly: false subPath: manifest.json - mountPath: /etc/ssl/certs/ca-certificates.crt name: root-ca readOnly: true subPath: ca-certificates.crt volumes: - configMap: defaultMode: 420 name: extension-downloader-configmap name: extensiondownloader - emptyDir: {} name: plugin - configMap: items: - key: manifest.json path: manifest.json name: custom-manifest-configmap name: custom-manifest - configMap: name: ca-roots items: - key: ca-certificates.crt path: ca-certificates.crt name: root-ca initContainers: - command: - /bin/sh - -c - python /tmp/install.py --extension delinea-secretserver-pam --version 1.0.1 --out /app/extensions/delinea-secretserver-pam image: python:3.11.10 imagePullPolicy: IfNotPresent name: extensiondownloader resources: {} terminationMessagePath: /dev/termination-log terminationMessagePolicy: File volumeMounts: - mountPath: /tmp name: extensiondownloader - mountPath: /app/extensions/delinea-secretserver-pam name: plugin # Remainder of file not shown
-
Be sure to use the remote version of the manifest.json file and give the PAM provider a unique name for the orchestrator. The provider name is Delinea-SecretServer-Orch1 in the following example. Use this same name when creating a PAM provider in Keyfactor Command for use with this orchestrator.
{
"extensions": {
"Keyfactor.Platform.Extensions.IPAMProvider": {
"Delinea-SecretServer-Orch1": {
"assemblyPath": "delinea-secretserver-pam.dll",
"TypeFullName": "Keyfactor.Extensions.Pam.Delinea.SecretServerPam"
}
}
},
"Keyfactor:PAMProviders:Delinea-SecretServer-Orch1:InitializationInfo": {
"Host": "https://YOUR-DELINEA-URL/SecretServer",
"Username": "YOUR-DELINEA-USERNAME",
"Password": "YOUR-DELINEA-PASSWORD"
}
}Remote PAM Extensions on the CA Connector Client (Windows or Linux)
To install a PAM extension on a CA Connector The Keyfactor CA Connector is installed in the customer environment to provide a connection between a CA and Keyfactor Command when a direct connection is not possible. It is supported on both Windows and Linux and has versions for Microsoft (Windows only) or EJBCA CAs. Client for use by that connector only for a Windows or Linux install:
-
Follow the instructions as per Remote PAM Extensions on the Keyfactor Universal Orchestrator Server (Windows or Linux).
-
On the CA Connector Client server, the extensions directory within the install directory is by default:
Windows: C:\Program Files\Keyfactor\Keyfactor CA Connector\extensionsLinux: /opt/keyfactor/ca-connector/extensions - Restart the CA Connector Client service (see Start the Service).
Remote PAM Extensions on the CA Connector Client (Container)
To install a PAM extension on a CA Connector Client for use by that connector only for a container install, follow the instructions as per Remote PAM Extensions on the Keyfactor Universal Orchestrator Server (Container).
