Dashboard

The dashboard page on the Management Portal provides a centralized view of your PKI A public key infrastructure (PKI) is a set of roles, policies, and procedures needed to create, manage, distribute, use, store and revoke digital certificates and manage public-key encryption. environment, helping you monitor key metrics such as expiring certificates, endpoint An endpoint is a URL that enables the API to gain access to resources on a server. discovery results, and certificate usage trends—all at a glance. This real-time visibility enables you to quickly identify areas that require attention—such as certificates nearing expiration or endpoints that failed to present a valid certificate—and take action before issues arise.

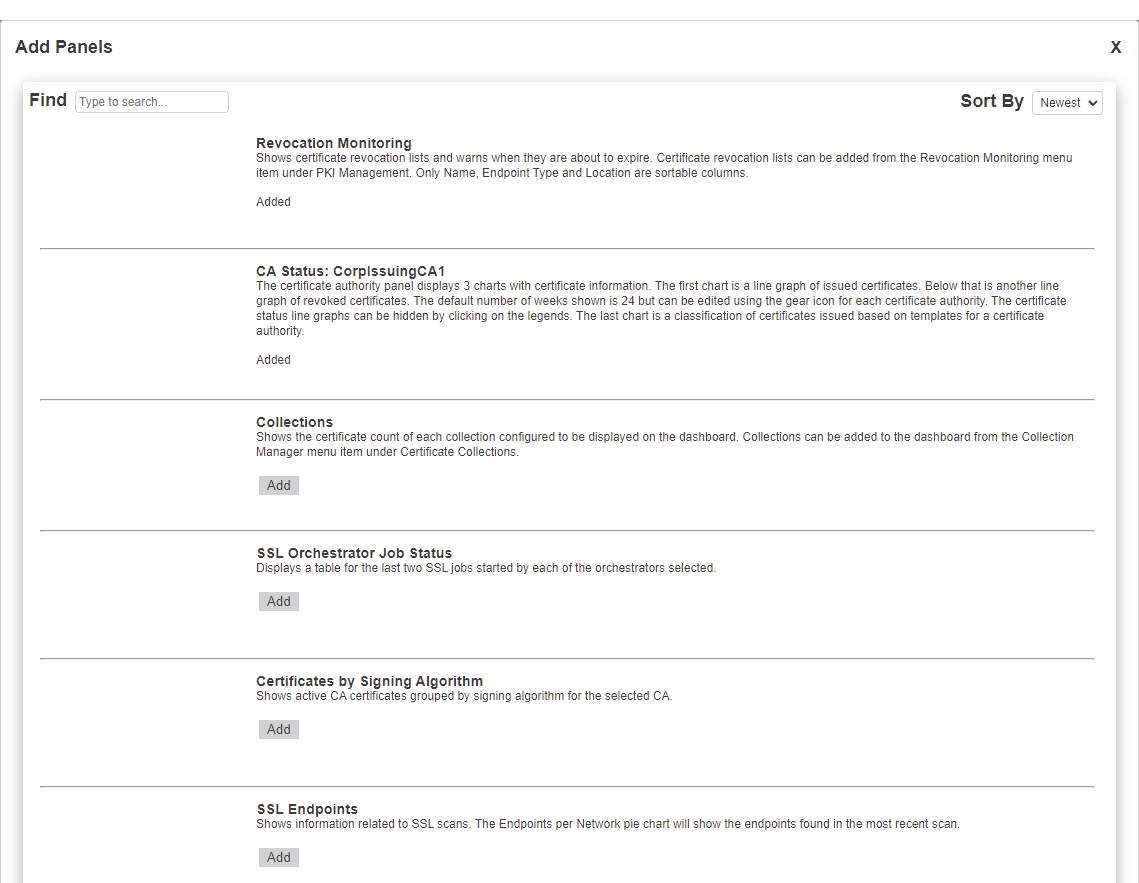

When you first open the Dashboard tab you will be presented with a blank dashboard which will need to be configured to your preferred settings (see Dashboard Operations). Your dashboard widgets can be organized up to 6 columns wide and extend vertically as necessary to fit all of the configured widgets. Keyfactor Command provides the PKI information in various types of widgets. See Table 9: Widget Chart Types for a description of the widget types.

Widgets can be in one of three states at any one time.

• Value returned: The widget will return a result, even if that result is no data.

• Loading state: While it retrieves data, the widget is in the loading state and will display a spinning Please Wait icon.

• Error State: A button titled View Error will display if the widget is in an error state. Clicking the button opens a dialog that explains what caused the error. For example, if the widget ran on a collection The certificate search function allows you to query the Keyfactor Command database for certificates from any available source based on any criteria of the certificates and save the results as a collection that will be availble in other places in the Management Portal (e.g. expiration alerts and certain reports). and the collection is deleted or permission is not granted.

Table 9: Widget Chart Types

Widget Type	Description

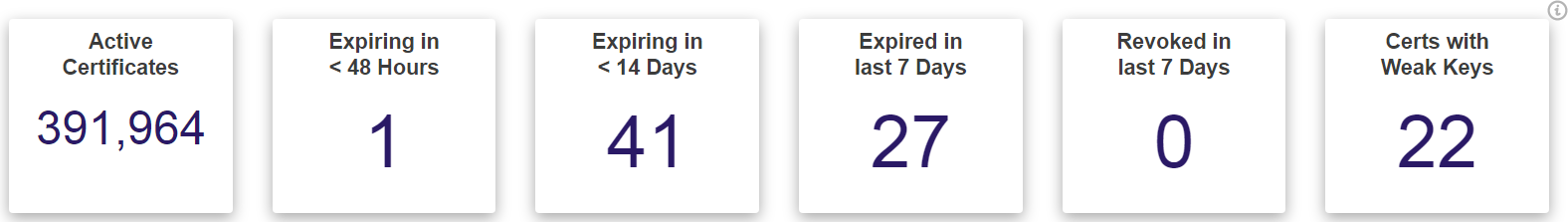

Count Tile	A square, one column widget (1x1) with a number in the middle. Clicking on the number takes you to the relevant page in the Keyfactor Command Management Portal to display the results. If the count is greater than or equal to six digits, it is automatically shortened using standard abbreviations—like K for thousands and M for million (e.g., 434.8K, 2.5M). Includes a configurable value, Critical Threshold, which is a user-defined number. If the count in the tile is greater than or equal to this value, the tile will display the title and count in red.
Doughnut Chart	A square, two column widget (2x2) with a doughnut chart to represent the results. Clicking on a wedge takes you to the relevant page in the Keyfactor Command Management Portal to display the results. Hover over a wedge to see the related value.
Bar Graph	A square, two column widget (2x2) with a bar graph to represent the results. Clicking on a bar in the graph takes you to the relevant page in the Keyfactor Command Management Portal to display the results. Hover over a bar to see the related value.
Line Plot	A rectangular, three column widget (3x2) with a line plot to represent the results. Clicking on a segment of the plot takes you to the relevant page in the Keyfactor Command Management Portal to display the results. Hover over a segment to see the related value.
Grid	A local grid used to display some information. There are currently no click-throughs in the grid.
